Description
Parameters and specifications:
Analog input: 8-channel analog input, 750 kHz independent sampling rate, 16-bit resolution, ±10 V.
Analog output: 8-channel analog output, 1 MHz independent update rate, 16-bit resolution, ±10 V.
Digital lines: 96 digital lines that can be configured for input, output, timer or custom logic at rates up to 40 MHz.
FPGA: Equipped with a Virtex-5 LX50 FPGA, which can be programmed via the LabVIEW FPGA module.
DMA channel: 3 direct memory access (DMA) channels for high-speed hard disk data reading and writing.
Series:

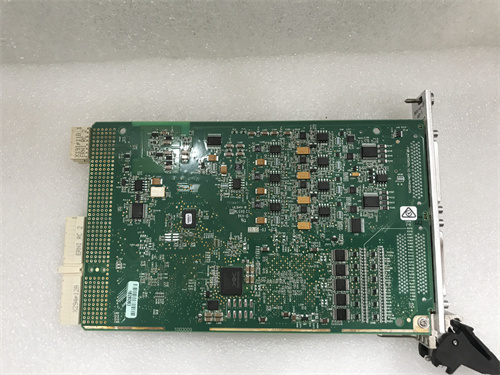

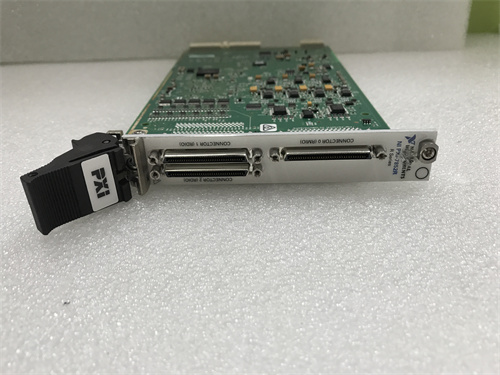

The NI PXI-7852R belongs to National Instruments’ PXI family of multifunctional RIO (Reconfigurable I/O) devices.
Features:
High performance data acquisition: The sampling rate is up to 1.6GS/s, supporting high-speed data acquisition and processing.
Flexible I/O configuration: Digital lines can be individually configured for input, output, counter/timer, pulse width modulation (PWM), flexible encoder input, or dedicated communication protocols.
FPGA programming: The FPGA is programmed through the LabVIEW FPGA module to achieve custom on-board decisions and flexible I/O operations.
Programming flexibility: Support for a variety of programming interfaces and software platforms, such as LabVIEW and C/C++.
Synchronization and timing control: Complete control of the synchronization and timing of all signals and operations, with custom on-board decisions for hardware timing speed and reliability.
Functions:
The NI PXI-7852R is suitable for automated test and measurement applications such as custom discrete and analog control, sensor simulation, rapid prototyping, hardware-in-the-loop (HIL) testing, digital protocol simulation, and more.
