Product Description

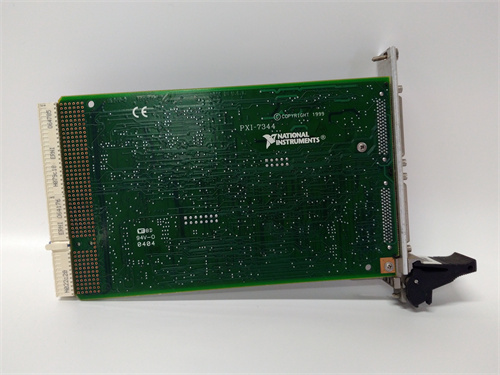

The NI PXI – 7344 is a 4 – axis, PXI stepper/servo motion control module1. It features advanced motion control capabilities, along with handy software tools and motion VI libraries for use with LabVIEW1. This controller is designed for PXI, PCI, and 1394 bus computers, allowing users to run up to 10 motion programs simultaneously in a real – time, preemptive, multitasking OS environment1. The NI PXI – 7344 is equipped with motion input/output for home switch inputs, a breakpoint output, end – of – travel limit, trigger input, and up to 20 MHz encoder feedback rates1. It also has 32 digital I/O bits, 8 multiplexed analog input channels with 4 user signals, 4 analog output channels, and 4 8 – bit digital I/O ports1. Additionally, it supports the National Instruments’ proprietary Real – Time System Integration (RTSI) bus, which enables high – speed and efficient connectivity between different NI products1.
Product Parameters
- Axes: 41
- Digital I/O Bits: 321
- Analog Input Resolution: 12 bits1
- Encoder Feedback Rate: Up to 20 MHz1
- Operating Temperature: 0 to 55 °C1
- Bus Compatibility: PXI, PCI, and 13941
- Software Compatibility: LabVIEW, LabWindows/CVI, BridgeVIEW, and FlexMotion software1
Advantages and Characteristics
The NI PXI – 7344 offers several advantages. It has high precision and speed, thanks to its high – performance processor and high – speed data transmission technology, which can achieve high – precision and high – speed data processing and transmission. It is also highly reliable, using high – quality materials and manufacturing processes, with high durability and stability, suitable for a variety of harsh industrial environments. Moreover, it is programmable and easy to configure, allowing users to customize it according to their actual needs. Additionally, the support for the RTSI bus enables easy synchronization across multiple data acquisition, image acquisition, or motion devices, enhancing system integration. For example, in an industrial automation production line, it can accurately control the movement of mechanical arms with high speed and precision, improving production efficiency and product quality.
Application Areas and Application Cases
The NI PXI – 7344 is widely used in various industries, including manufacturing, energy, and automation control. In the manufacturing industry, it is used in production lines to control the motion of robots and mechanical arms. For example, in a car manufacturing plant, the NI PXI – 7344 is used to control the precise movement of robotic arms for welding, painting, and assembling operations. This ensures high – quality production and improves production efficiency. In the energy industry, it can be used in power plants to control the movement of turbines and generators. In the automation control field, it is used in various automated systems to achieve precise motion control.
Comparison with Similar Products
Compared to similar products, the NI PXI – 7344 has stronger motion control capabilities, with a higher encoder feedback rate and better support for multi – axis motion control. It also has better software compatibility, offering a variety of development tools and libraries, which makes it easier for users to develop custom applications. In addition, its high – reliability design and support for the RTSI bus give it an edge in system integration and stability.
Selection Recommendations
When selecting the NI PXI – 7344, consider the following factors. Compatibility is crucial. Make sure it is compatible with your existing PXI, PCI, or 1394 bus – based computer system. Also, consider the operating environment. Ensure that the temperature and other environmental conditions meet the requirements of the device. Budget is another factor to consider. Although the NI PXI – 7344 offers excellent performance, it is important to ensure that it fits within your budget. Additionally, think about your specific motion control requirements, such as the number of axes, the required precision, and the speed of motion.
Precautions
When using and installing the NI PXI – 7344, follow these precautions. Ensure that the installation is carried out in accordance with the manufacturer’s instructions to avoid damage to the device. During operation, make sure that the power supply voltage is stable to prevent damage to the device due to voltage fluctuations. Regularly check the connection of the device to ensure that there is no loose contact. Also, perform regular maintenance and cleaning to keep the device in good working condition.
