Description
Parameters and specifications:
Number of control axes: Supports motion control of up to four separate or coordinated axes.
Output frequency: The output frequency can reach 50kHz.
Motion control features: Includes stepper and servo motor control for PCI, PXI and 1394 bus computers.
Feedback system: Position and speed feedback using orthogonal encoders or analog inputs.
Command output: Analog command output is provided in the industry standard range of ±10 V.
Series:

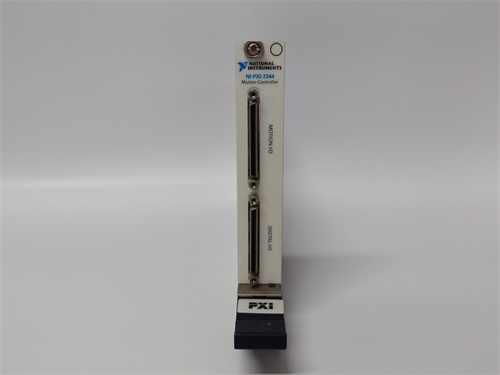

PXI Series: The NI PXI-7344 belongs to the PXI series of motion controllers of NI.
Features:
Dual processor: Equipped with dual processors and a real-time onboard operating system.
Multi-axis interpolation: Provides multi-axis interpolation to support hybrid motion trajectory control and fully coordinated circular, linear, point-to-point, gear and vector space control.
Easy to use: Compatible with software such as LabVIEW, it provides easy to use software tools and additional motion VI libraries.
Rich I/O features: Dedicated motion I/O including limit and origin switches, and additional I/O features for general-purpose functions.
Functions:
Motion control: The NI PXI-7344 is a stepper/servo motion controller for both simple and complex motion applications.
Applications: Widely used in automated production lines, robot systems, test and measurement equipment and other fields for accurate motion control.
