Description

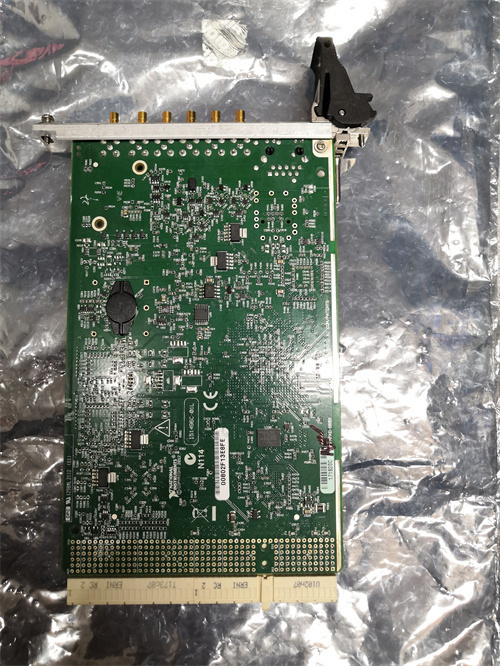

NI PXI-6683 is a PXI synchronization module, the following are its parameters, specifications, dimensions, weight, series, features and functions:
Parameters and specifications:
Type: PXI Synchronization module.
Function: Synchronize multiple PXI modules to operate multiple PXI enclosures in master and slave configurations, or synchronize enclosures with external instruments.
Clock Type: On-board temperature compensated crystal Oscillator (TCXO).
Clock accuracy: Not specifically mentioned, but long-term stability can be achieved with GPS, IEEE 1588, and IRIGB taming.
Trigger capability: The ability to route clock signals and triggers within the PXI chassis or between multiple chassis with low skew.
Size and weight:
Dimensions: 6.3 x 3.9 inches.
Weight: 7.2 ounces.
Series: A family of PXI modules in NI’s PXI platform devices.
Features:
Use PXI’s trigger bus, star trigger, and system reference clock functions to achieve advanced multi-device synchronization.
Improve measurement accuracy, enable advanced trigger schemes, or synchronize multiple devices to operate as a whole.
Ideal for applications requiring very high channel numbers.
Functions:
In PXI systems, it is used to synchronize multiple devices to ensure that they are working on the same time basis, thereby improving the performance and reliability of the system.
By providing accurate clock signals and trigger functions, you can ensure the consistency and accuracy of data acquisition, signal processing and transmission operations.
