Description

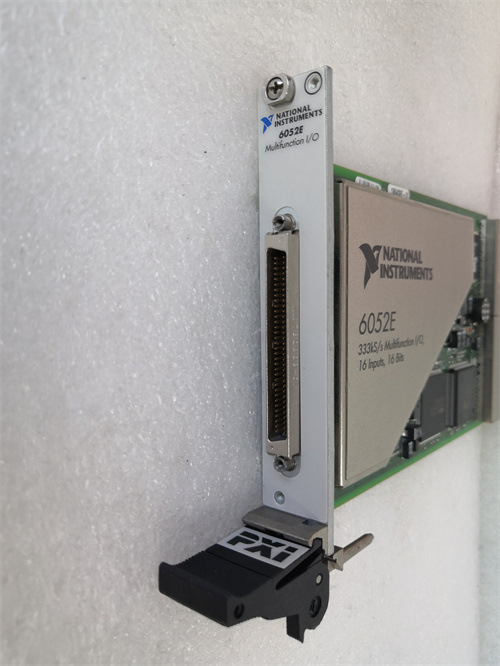

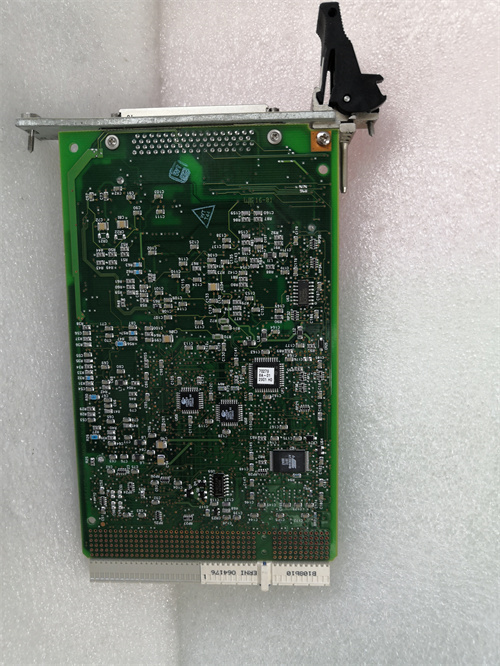

The NI PXI-6052E is a multifunctional data acquisition (DAQ) device designed for precision and high-speed data collection in various industrial and research applications. Here are the key parameters, specifications, dimensions, weight, series, features, and its role in English:
Parameters and Specifications:
Channels:
16 analog inputs (configurable as 8 differential inputs).
2 analog outputs.
24 digital I/O lines.
2 counters/timers.
Resolution: 16 bits.
Sampling Rate:
Up to 1.25 MS/s per channel (16 single-ended analog inputs).
Up to 333 kS/s for 16 analog inputs (depending on the configuration).
Input Voltage Range: ±10v.
Output Voltage Range: ±10v.
Input Impedance: 1mohm / 25pf.
Output Impedance: 50 ohms.
Digital I/O Voltage Level: TTL/CMOS.
Dimensions and Weight:
The exact dimensions and weight of the NI PXI-6052E may vary slightly based on the manufacturer’s specifications. It is recommended to refer to the official NI documentation or datasheets for detailed dimensions and weight information.
Series:
The NI PXI-6052E belongs to the NI PXI series of data acquisition modules.
Features:
Compatibility: It is compatible with various software development environments (ADEs) like LabVIEW, Visual Basic, C#, and C/C++.
Ease of Use: Features a no-switch, no-jumper design for simplified use.
Timing and Synchronization: Offers high-performance backplane timing and synchronization for precision measurements.
Self-Calibration: Capable of self-calibration using the NI-MCal algorithm to characterize nonlinearities, offsets, and gain errors.
Role and Application:
The NI PXI-6052E is ideal for applications that require high-precision and high-speed data acquisition. This includes semiconductor industry, automotive testing, aerospace applications, and other fields where precise measurement and control are crucial.
Please note that the specifications and features mentioned above are general in nature and may vary slightly based on the specific model and configuration. It is always advisable to consult the official NI documentation or datasheets for the most accurate and up-to-date information on the NI PXI-6052E module.
