Description

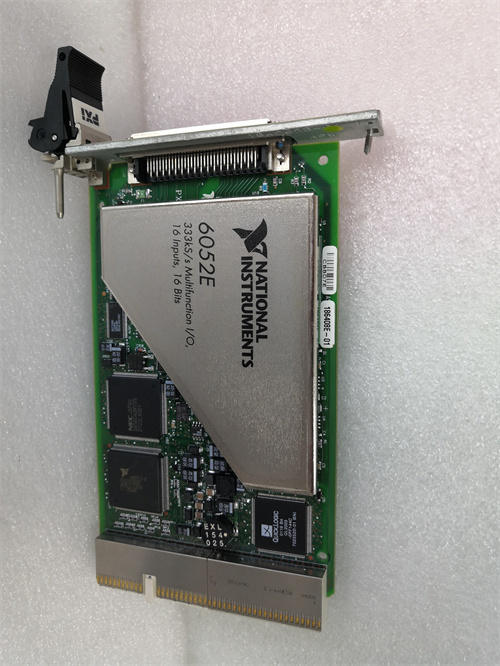

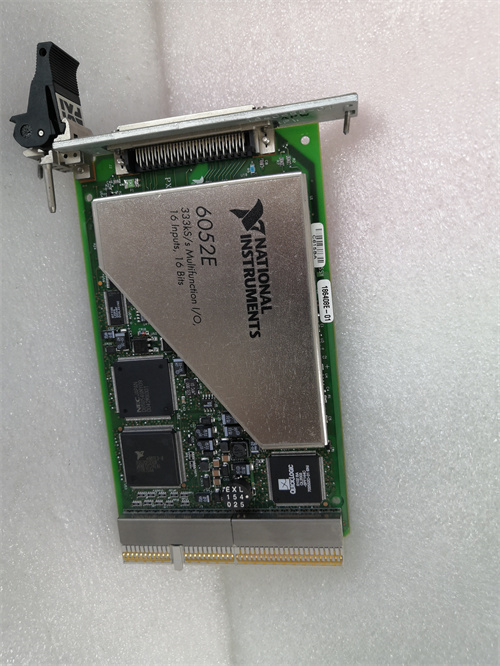

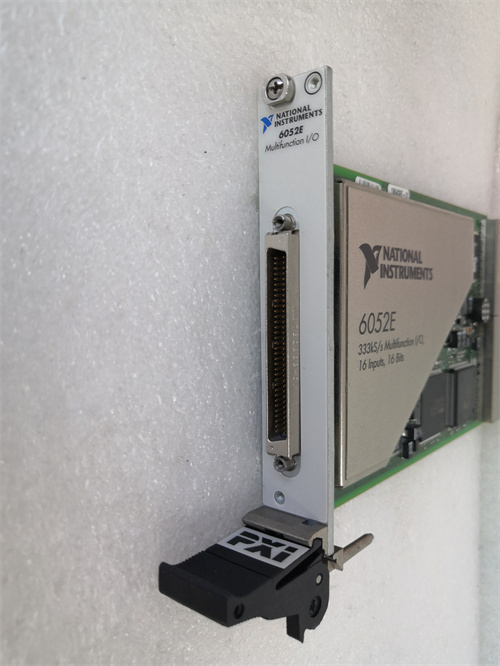

NI PXI-6052E Parameters, Specifications, Dimensions, Weight, Series, Features, and Functions in English
Parameters & Specifications:
Resolution: The NI PXI-6052E offers a high resolution of 16 bits.
Sampling Rate: It has a maximum sampling rate of 1.25 MS/s per channel. However, some sources indicate a maximum sampling rate of up to 333 kS/s.
Input/Output Channels: The module provides 16 analog input channels, 2 analog output channels, and 24 digital I/O lines. Some specifications may indicate 8 analog input channels and 8 DIO channels.
Input Voltage Range: The input voltage range is ±10v.
Output Voltage Range: The output voltage range is ±10v.
Triggering: It supports analog and digital triggering.
Dimensions & Weight:
The exact dimensions and weight of the NI PXI-6052E may vary depending on the manufacturer’s specifications and any updates. It is recommended to consult the official documentation or contact the manufacturer for the most accurate measurements.
Series:
The NI PXI-6052E belongs to the NI (National Instruments) PXI series of modular instrumentation devices.
Features:
Compatibility: The module is compatible with a wide range of PXI chassis and controllers.
Timing & Synchronization: It offers high-performance timing and synchronization capabilities through NI-TClk technology.
Software Compatibility: The NI PXI-6052E is compatible with various software development environments such as LabVIEW, VI Logger, Measurement Studio, and other programming languages like C, C#, and C++/C++.
Ease of Configuration & Programming: It can be configured and programmed using the NI-DAQ 6052 driver software.
Multi-Functional: With its combination of analog and digital I/O, it can be used in various applications requiring both types of measurements.
Functions & Applications:
Data Acquisition: The NI PXI-6052E is primarily used for high-speed, high-resolution data acquisition in a variety of industrial, scientific, and research applications.
System Integration: It can be easily integrated into larger test and measurement systems due to its modular design and compatibility with standard PXI chassis.
Automation & Control: It can be used in automation systems for monitoring and controlling various parameters in real-time.
