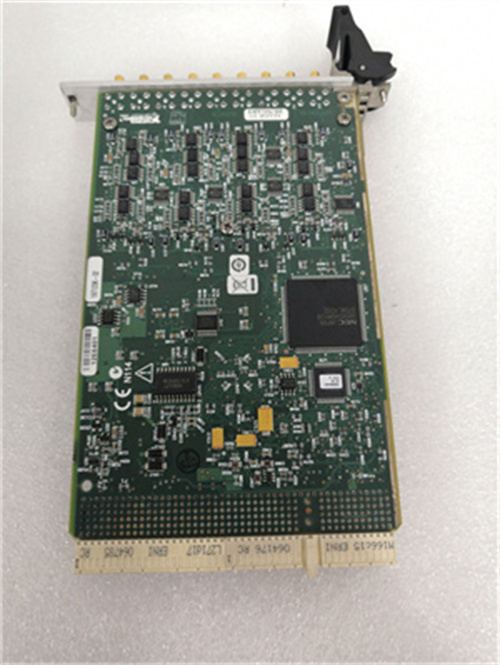

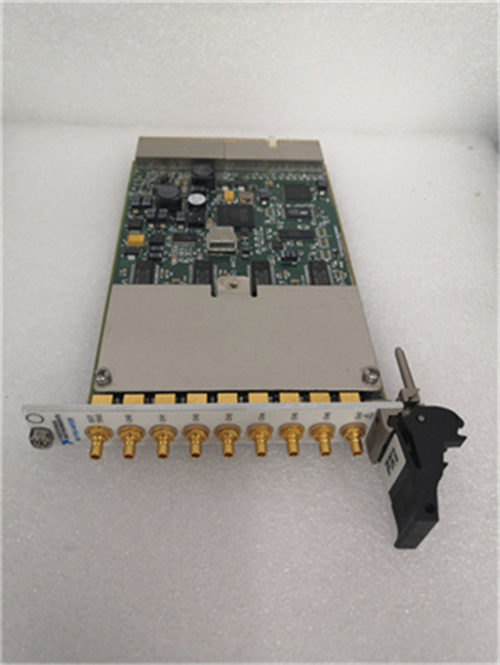

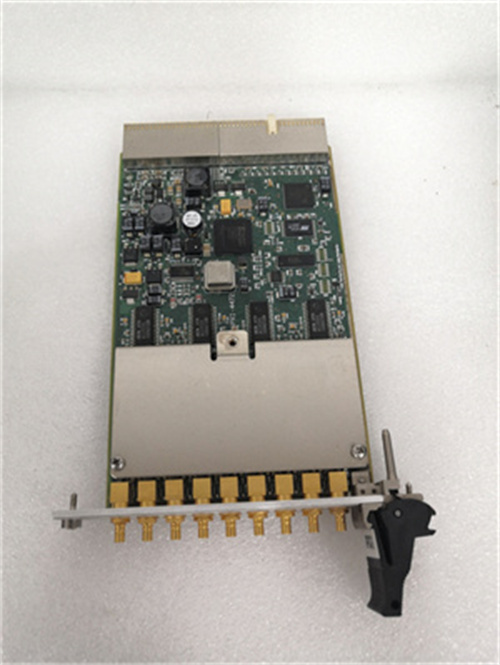

NI PXI-4472B

¥10,352.00

Parameters and Specifications:

  • Analog Inputs: 8 differential or 16 single-ended
  • Analog Outputs: 4
  • Digital I/O: 48 lines
  • Update Rate: Up to 1.25 MS/s
  • Resolution: 16-bit
  • Voltage Range: ±10v, ±1v, ±100mv
  • Operating Temperature: -20°C to 55°C
  • Power Consumption: Maximum 14W
Category:

Description

Parameters and Specifications:

  • Analog Inputs: 8 differential or 16 single-ended
  • Analog Outputs: 4
  • Digital I/O: 48 lines
  • Update Rate: Up to 1.25 MS/s
  • Resolution: 16-bit
  • Voltage Range: ±10v, ±1v, ±100mv
  • Operating Temperature: -20°C to 55°C
  • Power Consumption: Maximum 14W
  • Size: 3U PXI module

Features:

  • Sound and Vibration Measurement: Optimized for vibration and low-frequency AC measurements
  • Integrated Signal Conditioning: Input channels incorporate integrated electronic piezoelectric (IEPE) signal conditioning for accelerometers and microphones
  • Antialiasing Filters: Built-in antialiasing filters that automatically adjust to your sample rate
  • Multi-Module Synchronization: Can synchronize multiple PXI-4472B modules for high-channel-count applications
  • Software Support: Compatible with NI LabVIEW and NI-DAQmx software

Application:

  • The NI PXI-4472B PLC module is designed for high-performance programmable logic controller applications in industrial automation. It provides reliable data acquisition and control for various industrial applications that require precise sound and vibration measurements.
