Description
Parameters
- Channel Count: 8 channels1
- Resolution: 24-bit1
- Maximum Sample Rate: 500k samples per second (SPS) per channel1
- Input Voltage Range: ±10v1
- Output Voltage Range: ±10v1
Specifications
- Analog Input: 8 differential or 16 single-ended1
- Analog Output: Not specified
- Digital I/O Lines: 241
- Counters/Timers: 21
- Bus Interface: PCI1
- Communication Interfaces: Ethernet, RS-232
Features
- High-Resolution: 24-bit resolution for accurate measurements1.
- Flexible Configuration: Supports both differential and single-ended analog inputs1.
- Multiple Digital I/O Lines: Provides 24 digital I/O lines for various applications1.
- PCI Bus Interface: Compatible with PCI-based systems1.
- Communication Interfaces: Includes Ethernet and RS-232 for data transfer and communication2.
- Self-Diagnostic System: Incorporates a relay-based self-diagnostic system that continuously monitors the relay hardware status and relay software operation3.
Role

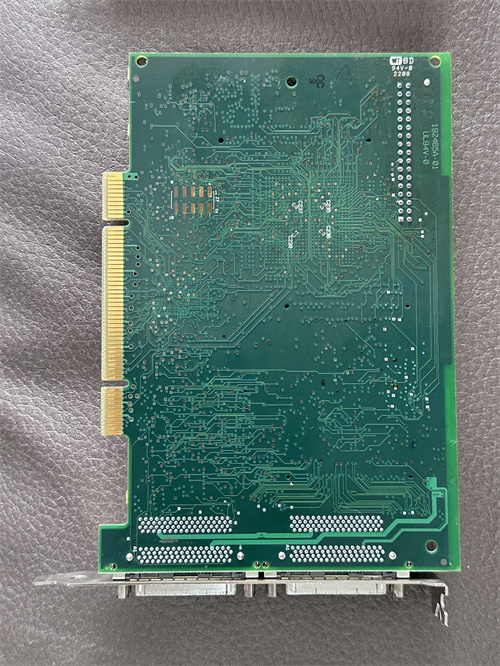

- Data Acquisition and Control: NI PCI-7813R is a data acquisition and control card that is used in industrial automation systems for collecting analog and digital signals, controlling processes, and communicating with other devices247.
- Flexible Application Support: It can be configured for various applications, including monitoring, testing, and control systems
