Description

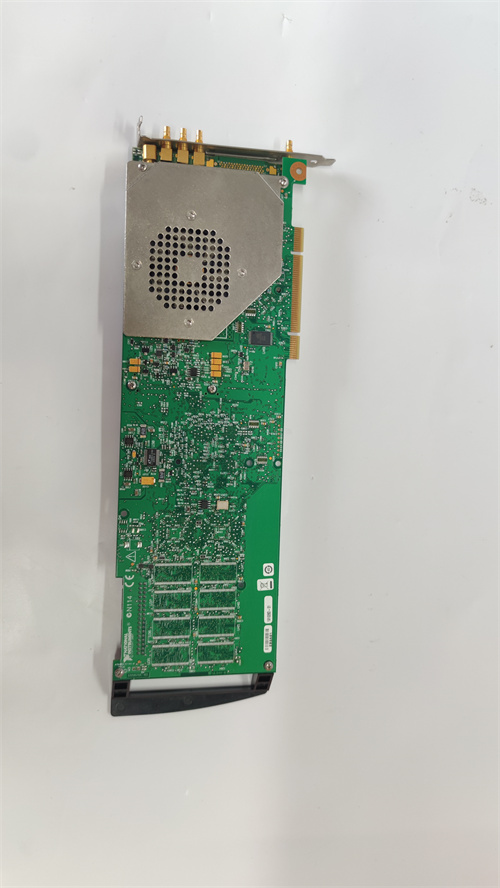

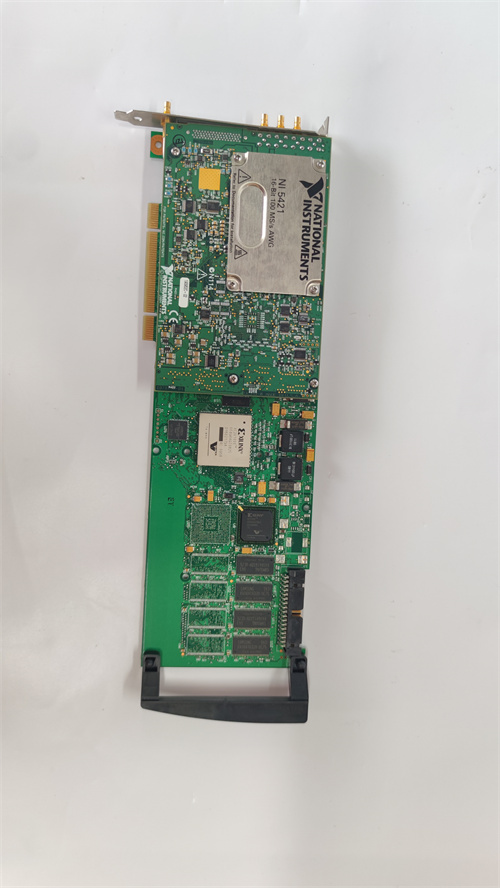

The NI PCI-5421 is an arbitrary waveform generator manufactured by National Instruments (NI). The following is a specific introduction to its parameters, specifications, dimensions, weight, series, characteristics and functions:
Parameters and specifications:
Voltage: 24V
Current: Range of 100-400A
Onboard memory: Available in three versions: 8MB, 32MB, and 256MB
Size and weight:
Weight: 0.45 kg (according to some information, the weight is 2KG, this may vary from batch to batch or configuration)
Series:
The PCI-5421 belongs to NI’s family of waveform generator devices designed to generate user-defined arbitrary waveforms.
Features:
Waveform generation: Standard sine, slope, triangle, and square wave signals can be generated using direct digital frequency synthesis (DSS) technology to accurately generate waveforms.

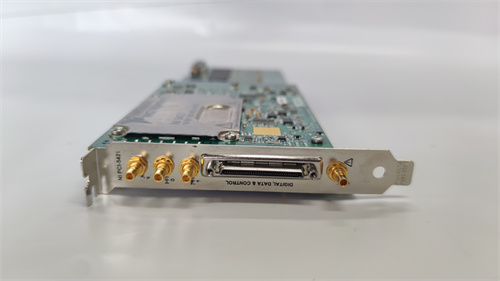

Output channel: With an analog output channel with SMB (jack) connector, 16-bit resolution, and support for waveform summation, you can connect the output terminals of different modules.
Synchronization and streaming: The device can be used for streaming data and advanced synchronization.
Frequency range: As an input, the channel is used as a trigger channel and its frequency ranges from DC to 105 MHz.
Functions:
NI PCI-5421 is widely used in industrial automation, test and measurement and other fields to generate and control a variety of waveform signals to support the precise control of industrial processes, experiments and tests.
By precisely controlling waveform signals, PCI-5421 helps improve product quality, increase production efficiency, and provide critical measurement data during research and development.
