Description
Parameters and specifications:
Functions: Control and drive the motor to achieve motion control, position control and speed control applications.
Input voltage range: +/ -10 V.
Maximum sampling rate: 100 kS/s.
Resolution: 16 bits.
Number of channels: 4 (analog input module) or possibly more (motor drive module).
Size and weight:
Dimensions: 29 mm x 119 mm x 175 mm
Weight: 0.2kg
Series:

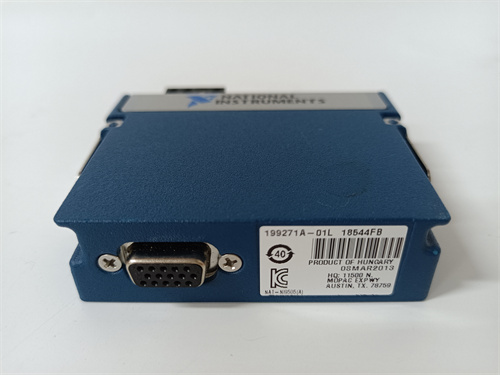

The NI NI-9505 is part of NI’s C-Series modules, modular systems for data acquisition, control and other automation applications.
Features:
High precision: Using high precision A/D converter (for analog input module), high precision analog measurement and motor control can be achieved.
High reliability: The use of high-quality materials and processes to ensure long-term reliable operation.
Support a variety of interfaces: Support RS-232, RS-485 and other interfaces (for analog input modules), easy to connect the controller. Motor drive modules are also usually equipped with high-speed serial communication interfaces, such as RS232, RS485, CAN bus, etc.
Flexible control mode: Support a variety of control modes, including open loop control, closed loop control, step control, etc.
Easy to operate and maintain: It has a simple and easy-to-use operation interface and friendly man-machine interface, which is convenient for users to set up and monitor. At the same time, the module also has a low maintenance cost and a simple troubleshooting process.
Functions:
The NI NI-9505 Motor drive module is used to control and drive motors for precise motion control, position control and speed control applications.
The NI NI-9505 analog input module is used to convert the analog signal into a standard digital signal and send it to the controller for a variety of industrial applications requiring high precision analog measurement, such as manufacturing, energy, oil and gas.
