Description

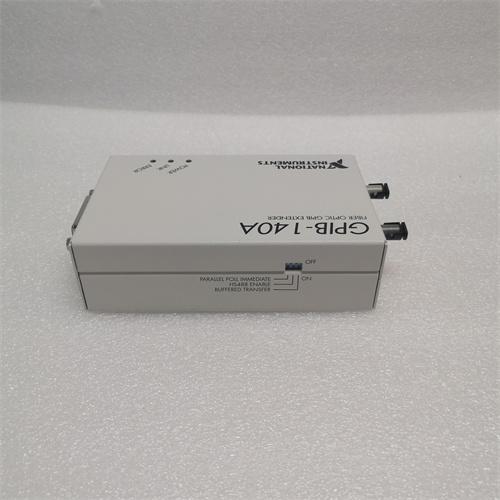

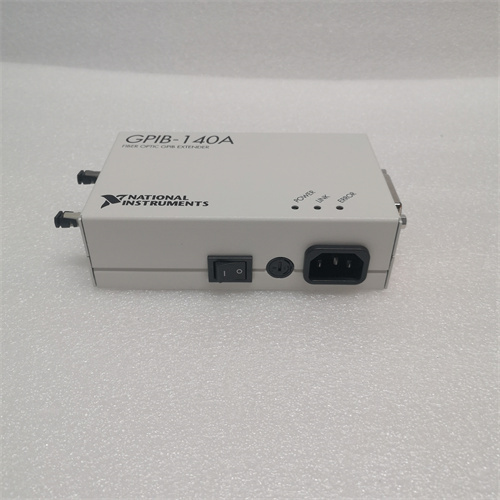

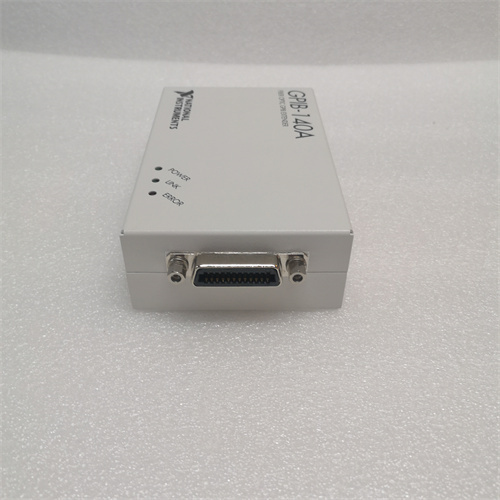

The NI GPIB-140A is a high-performance General Purpose Interface Bus (GPIB) controller produced by National Instruments (NI) for connecting computers with various instruments and devices. It is widely used in data acquisition, control, and communication applications. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters & Specifications:
GPIB Interface: The GPIB-140A module provides a GPIB interface for connecting computers with instruments such as oscilloscopes, signal generators, digital multimeters, and more.
Communication Protocols: Supports standard GPIB communication protocols like IEEE-488.2, enabling data transmission and control instructions exchange between computers and instruments.
Maximum Transmission Rate: Up to 1.5 MB/s, suitable for high-bandwidth and real-time applications.
Device Compatibility: Compatible with GPIB devices, instruments, controllers, analyzers, and more.
Dimensions & Weight:
Dimensions: The approximate dimensions are 14 cm x 10 cm x 2 cm (length x width x height).
Weight: Typically, it weighs around 100 g. However, there might be slight variations depending on the specific version or accessories.
Series:
The NI GPIB-140A belongs to the GPIB controller series of National Instruments.
Features:
High-Speed Data Transmission: Supports fast data transmission, enabling real-time instrument control and data acquisition.
Small Form Factor: Its miniaturized design facilitates easy installation and portability.
Flexible Control: Provides flexible control capabilities for sending commands, setting control parameters, and receiving data.
Driver & Software Support: Includes drivers and software tools compatible with NI’s software platforms like LabVIEW, simplifying programming and data processing.
Multi-Device Connectivity: Supports the connection and management of multiple GPIB devices simultaneously.
Functions & Applications:
Data Acquisition & Control: The NI GPIB-140A is used to acquire data from instruments and control their operations.
Automation & Testing: It is suitable for automation and testing applications in laboratories, research facilities, and industrial settings.
Compatibility & Integration: Its compatibility with NI’s hardware and software products allows seamless integration into existing systems and environments.
