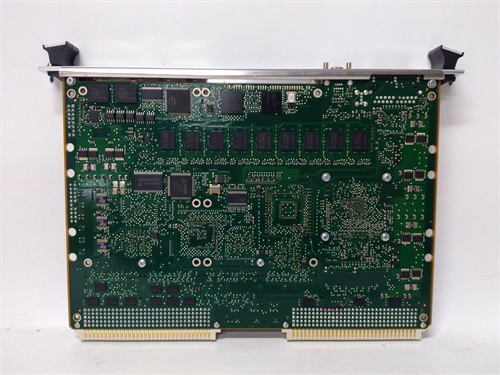

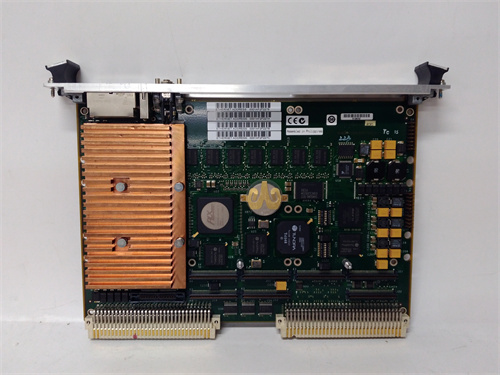

MVME7100

Description

Parameters and specifications
Processor:
The Artesyn MVME7100 uses an MPC864xD processor with a dual-core e600 processor core at up to 1.3GHz.
Another claim is that it uses a 1.3GHz PowerPC 604e processor, but considering the latest information, the MPC864xD is more accurate.
Memory:
Up to 2GB DDR2 ECC memory.
Memory options ranging from 1GB to 4GB are sometimes available.
Storage:
128MB NOR flash, and optional 2GB, 4GB or 8GB NAND flash.
Communication interface:

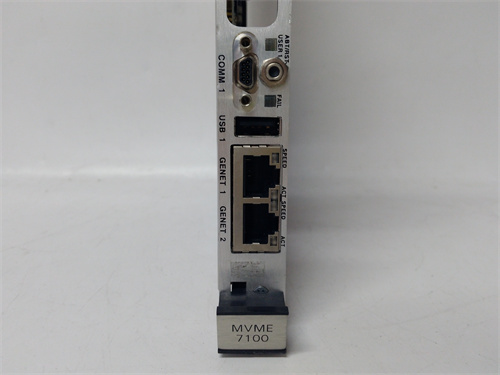

Four Gigabit Ethernet ports.
VMEbus, RS-232, RS-485, Ethernet and other communication interfaces.
Other features:
Supports USB 2.0 port.
Dual 33/66/100 MHz PMC-X interface, extensible with industry standard modules.
Size and weight
Size:
170mm x 105mm x 32mm (L x W x H).
Weight:
About 120g.
Another account puts the weight at 0.5kg,
trait
High performance: With a high performance processor and a lot of memory, providing powerful processing power.
Backward compatibility: Compatible with previous generation VME infrastructure, protecting customer investments in VMEbus and related technologies.
Scalability: Support modular design, flexible configuration and expansion of functions and interfaces as needed.
Rugged: Support extended temperature range (-40°C to +71°C or -40°C to +85°C), suitable for harsh environments.
