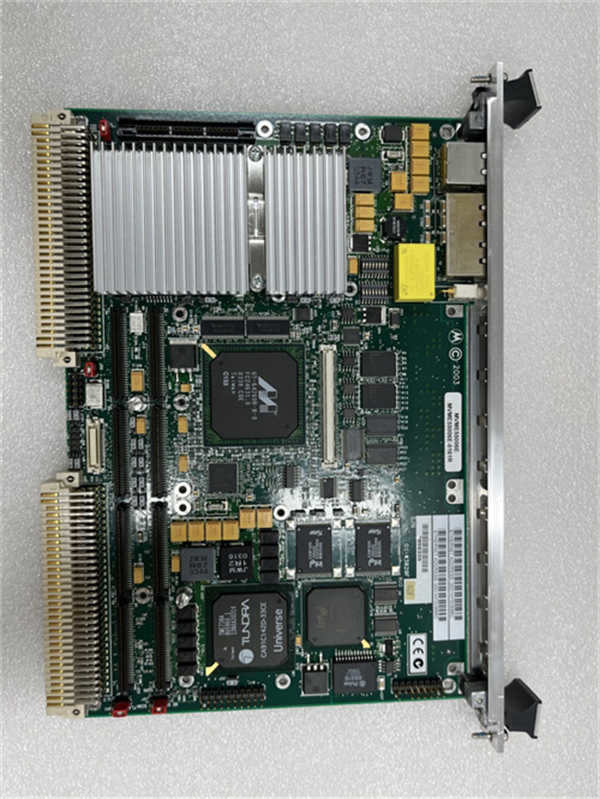

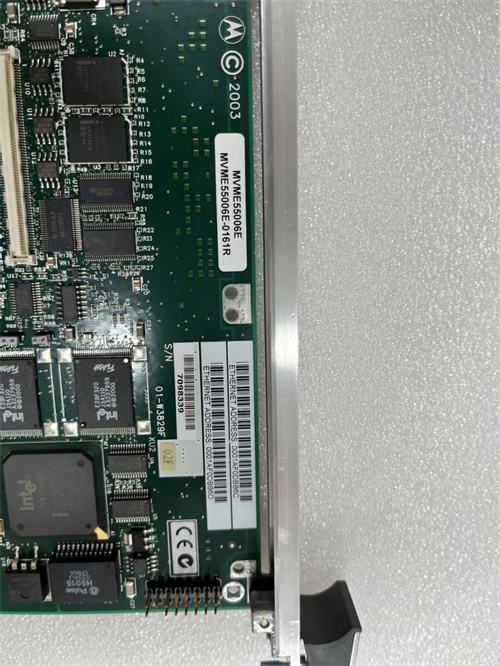

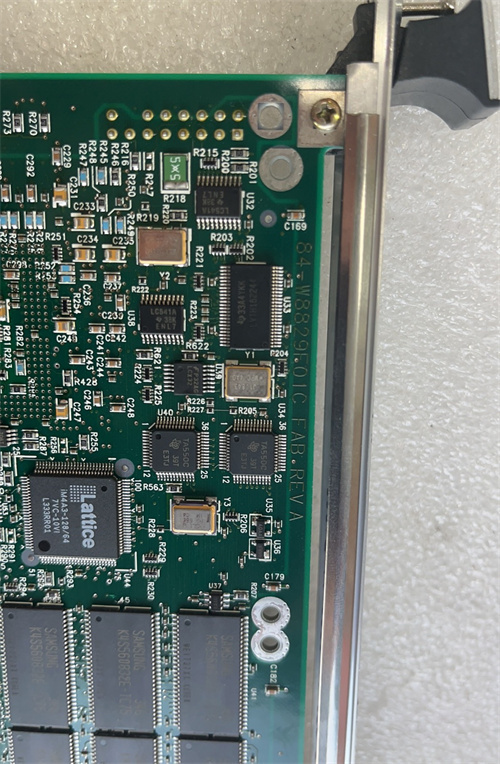

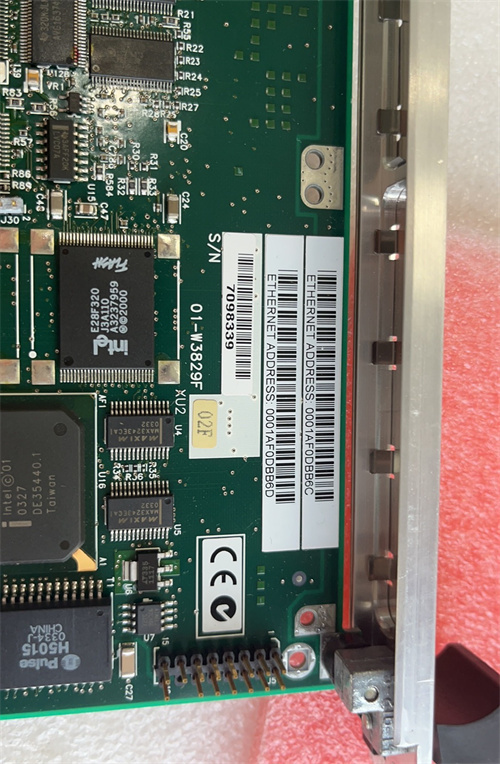

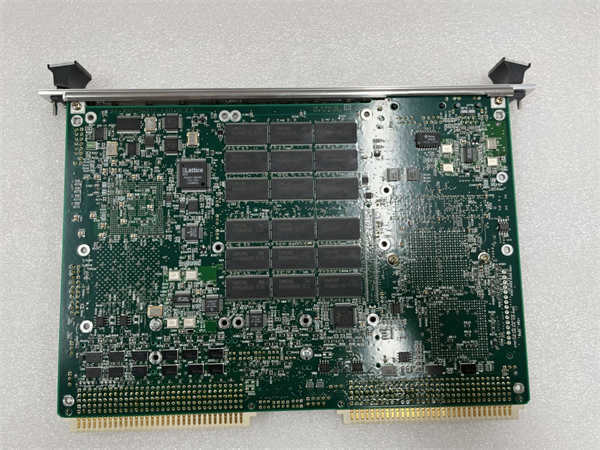

MVME5500-0161

¥5,462.00

Applications



  1. Industrial Automation: In manufacturing plants, the MVME5500 – 0161 can be used as a central control unit for complex production lines. It can manage multiple automated machines, monitor production parameters in real – time, and optimize the production process.
  2. Defense and Aerospace: In military applications, it can be used for on – board control systems in aircraft, missiles, and naval vessels. Its high – performance computing and wide temperature range make it suitable for these demanding environments.
  3. Power Generation and Distribution: In power plants and substations, it can be used for monitoring and controlling power generation equipment, such as turbines and generators, and for managing the power grid to ensure stable power supply.

Weight and Dimensions



  1. Weight: Approximately 2.5 kg, which is relatively light considering its high – end performance and the number of interfaces it provides.
  2. Dimensions: It has a standard VME form factor, with dimensions of about 233.35mm (length) x 160mm (width) x 20mm (height). This standard size allows it to be easily installed in VME – compatible chassis.
Category: Tag:

Description

Parameter Specifications



  1. Power Supply: The MVME5500 – 0161 operates on a 5V DC power supply with a tolerance of ±5%. The power consumption is approximately 30 – 40W, depending on the system load and configuration.
  2. Processor: It is equipped with a PowerPC 7447A processor running at a clock speed of 1.2 GHz. This high – performance processor provides significant computing power for handling complex real – time tasks.
  3. Memory: It has 1GB of DDR SDRAM for data storage and processing, which enables efficient handling of large – scale data. Additionally, it has 64MB of Flash memory for storing the operating system, boot code, and application programs.
  4. I/O Interfaces: It offers a wide range of I/O interfaces. There are two Gigabit Ethernet ports, which support high – speed network communication. It also has two serial ports (RS – 232/422/485), two USB 2.0 ports, and a PMC (PCI Mezzanine Card) slot for expanding functionality.
  5. Operating Temperature Range: Designed to function within a temperature range of – 40°C to 85°C. This wide temperature tolerance allows it to be used in extremely harsh industrial and environmental conditions.

Applications



  1. Industrial Automation: In manufacturing plants, the MVME5500 – 0161 can be used as a central control unit for complex production lines. It can manage multiple automated machines, monitor production parameters in real – time, and optimize the production process.
  2. Defense and Aerospace: In military applications, it can be used for on – board control systems in aircraft, missiles, and naval vessels. Its high – performance computing and wide temperature range make it suitable for these demanding environments.
  3. Power Generation and Distribution: In power plants and substations, it can be used for monitoring and controlling power generation equipment, such as turbines and generators, and for managing the power grid to ensure stable power supply.

Weight and Dimensions



  1. Weight: Approximately 2.5 kg, which is relatively light considering its high – end performance and the number of interfaces it provides.
  2. Dimensions: It has a standard VME form factor, with dimensions of about 233.35mm (length) x 160mm (width) x 20mm (height). This standard size allows it to be easily installed in VME – compatible chassis.

Features



  1. High – performance Computing: The 1.2 GHz PowerPC 7447A processor and 1GB of DDR SDRAM enable it to handle complex algorithms, real – time data processing, and multitasking, making it suitable for high – demand applications.
  2. Rich I/O Interfaces: The variety of I/O interfaces provides great flexibility in system integration. It can communicate with different types of devices, such as sensors, actuators, and other control units, facilitating the construction of comprehensive control systems.
  3. Modular Expandability: The PMC slot allows for easy expansion of functionality by adding additional mezzanine cards, such as I/O expansion cards or specialized communication cards.

Stability and Reliability



  1. Robust Construction: Built with high – quality components and a durable enclosure, it can withstand mechanical vibrations, shocks, and electromagnetic interference commonly found in industrial and military environments.
  2. Power Management: The power supply design with proper voltage regulation ensures stable power delivery to the internal components, reducing the risk of system failures due to power fluctuations.
  3. Long – term Testing: Through extensive long – term testing, it has been proven to have a reliable performance over time, with a low failure rate.

Practical Case



In an aerospace application, the MVME5500 – 0161 is used as the on – board control unit for an unmanned aerial vehicle (UAV). The Gigabit Ethernet ports are used for high – speed data communication with ground control stations and other UAVs in a formation. The serial ports are connected to various sensors on the UAV, such as inertial measurement units and GPS receivers, to collect flight data. The USB ports can be used for software updates and data transfer during maintenance. One day, the UAV encountered extreme temperature variations during a long – range flight. Thanks to the wide temperature range and robust construction of the MVME5500 – 0161, the control system continued to operate normally, ensuring the safe and stable flight of the UAV.
