Description
Parameters and specifications

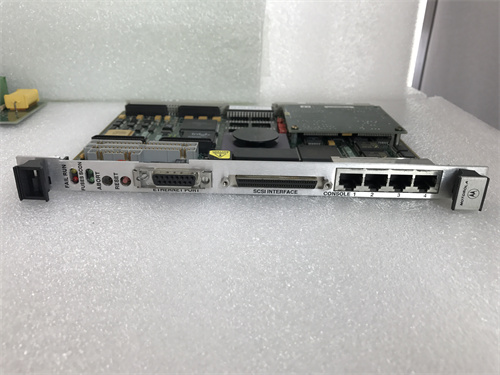

Processor: MC68040 or MC68LC040 microprocessor, 33 MHz.
Memory: 2 MB to 32 MB expandable RAM; Check protected DRAM with 1MB, 4MB or 8MB, and 512Kb of SRAM with battery backup.
Memory: IDE hard disk or flash memory.
I/O interface:
Two RS-232 serial ports.
One SCSI interface.
1 parallel port (may also include other serial communication ports and industrial packaging ports depending on other information).
1 Ethernet interface; LAN ethernet transceiver interface (DMA) is optional.
Four 32-pin JEDEC sockets (Model MVME162-2xx/3xx).
Power supply voltage: 5V DC.
Power consumption: 10W.
Operating temperature range: -40°C to +85°C.
Size and weight
Size: 146 mm x 100 mm x 30 mm.
Weight: 500g; However, there is also information that it weighs 2.6kg
trait
Modularity, scalability, portability, and interoperability: Follow the principles of open computing for easy system integration and expansion.
High speed and large capacity data transmission: supports a variety of communication protocols, such as Ethernet, fiber channel, etc., to meet the requirements of high precision and high stability.
Reliability: Equipped with a TOD clock (with battery backup) to ensure time accuracy and stability.
Multiple operating systems, such as VxWorks and Linux, are supported for development and deployment in different application environments.
