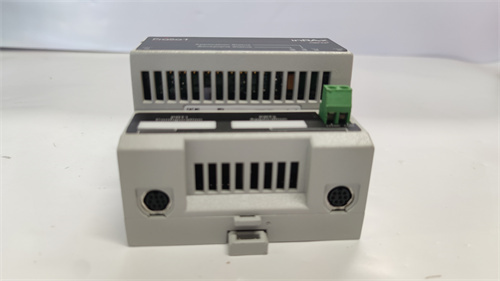

MVI94-MCM-MHI

Description

argument
Communication protocols: Support Modbus TCP/IP, Allen-Bradley CSPv4, and Ethernet/IP.
Communication rate: 10/100 Mbps.
Operating voltage: 10 ~ 30VDC.
Operating temperature: -40°C ~ 85°C.
Voltage: It is said that the voltage is 24V, but the more specific parameters indicate that it is 10 ~ 30VDC.
Current: It is said that the current is 100-400A, but this information may not be accurate, as this current range seems too high for network interface modules. It is more likely to refer to the current load that the module can handle or a specific parameter associated with it.
specification
Series: Flex I/O 1794 series.
Weight: 0.3kg,
Dimensions: 11.2 x 9.1 x 2.5cm.
Characteristic and function
Asynchronous data transfer support: This module supports asynchronous data transfer from Modbus network operations.
Wide range of applications: Suitable for a variety of industrial applications, including foreign equipment data concentrators, pipelines, offshore platforms, food processing, mining, SCADA communication environments, and pulp and paper industry applications.
Data storage and transfer capabilities: Supports the storage and transfer of more than 5,000 registers between FLEX I/O processor data files, and memory usage is completely user-defined.
Configuration flexibility: Having a port configured as a Modbus slave device allows the remote master device to interact with all the data contained in the module. It also has a port configured as a virtual Modbus master that can actively issue Modbus commands to other nodes used on the Modbus network.
Simplified operation and monitoring: Complete setup process and module monitoring with simple ladder logic, which can be monitored via debug ports and configuration files.
Flexible backplane interfaces: Flexible backplane interfaces that use I/O access ports.
