Description
Size and weight:
Specification: 2.5×11.2×24.2cm, weight is 0.4kg.
Series:

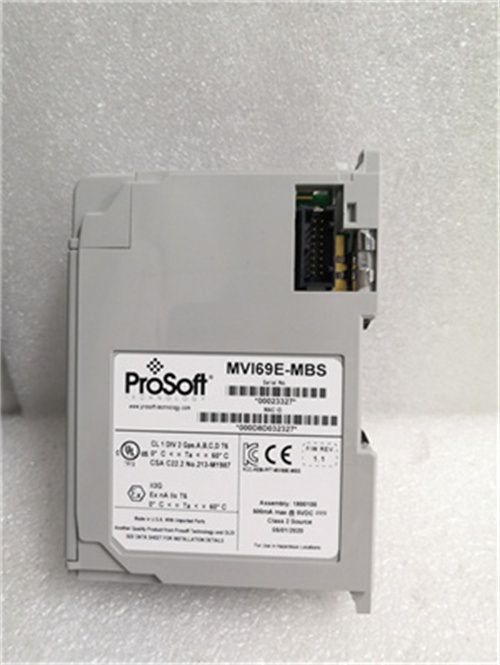

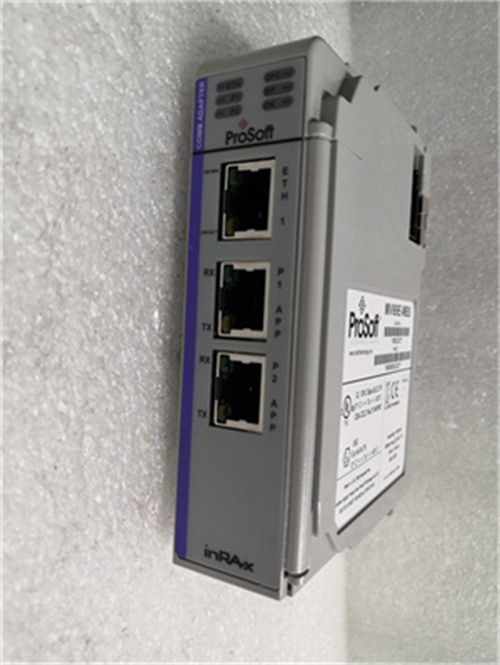

The MVI69E-MBS belongs to ProSoft Technology’s family of communication modules.
Features:
Industrial grade design: Excellent reliability and stability, able to operate in harsh industrial environments, with anti-interference capability and lightning protection.
Easy integration and maintenance: Compact size and easy integration, while providing fault diagnosis and condition monitoring functions for easy troubleshooting and maintenance.
User-defined label UDT: Provides logical definitions for I/O, module status, and control data.
Data storage and command support: Each Modbus port can support up to 250 commands, support Enron and Daniel floating-point data implementation, suitable for SCADA and various Modbus field device interface applications.
Functions:
MVI69E-MBS is a powerful, flexible, stable and reliable serial enhanced communication module suitable for various applications in the field of industrial automation. It can help realize the data exchange and communication between different devices, and improve the efficiency and reliability of industrial automation systems.
Parameters and specifications:
Multi-protocol support: MVI69E-MBS supports a variety of serial communication protocols, such as Modbus RTU, Modbus ASCII, DF1, ASCII, etc., which enables it to communicate with many different types of devices to meet the diverse needs of industrial automation systems.
Configuration flexibility: The module supports a variety of communication parameter Settings, such as baud rate, data bit, stop bit, and check bit, to adapt to different communication environments and device requirements.
Communication parameters: baud rate support range from 110 to 115K, data size support 7 or 8 bits, parity support none, parity, parity, RTS timing delay support 0 to 65535 ms.
Data storage: Data storage area up to 10,000 words per Modbus port.
Additional profile: Support for RSLogix 5000, improved integration of the CompactLogix system, allowing diagnostic data to be included in the RSLogix 5000 controller label.
Module rate: IP20, Class I, 2/ZONE 2.
