Description
Parameters and specifications:

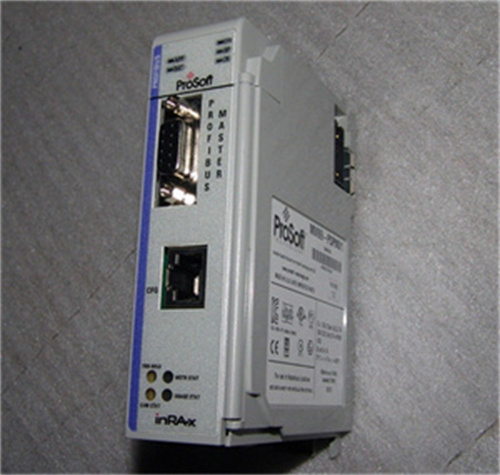

Main Features: MVI69-PDPMV1 is a powerful communication module designed to achieve data exchange and integration between different devices and systems.
Communication protocols: Support a variety of communication protocols, such as Ethernet /IP, Modbus TCP/IP and DeviceNet.
Compatibility: Compatible with all processors in the CompactLogix family, including L20/L23/L30/L31/L32/L35, L43, and L45. In addition, the module supports most MicroLogix 1500 LRP controllers.
Data transfer: Supports communication with up to 125 slave devices, capable of processing up to 1536 bytes of cyclic input and 1536 bytes of output data.
Diagnostic function: Can be configured to provide extended diagnostic data.
Interface: Comes with one (1) 9-pin Sub-D female connector that supports standard Profibus transfers up to 12 Mbps.
Safety certification: Standardized and approved by explosion-proof Certificate (ATEX Directive), CE, CB safety, Lloyd’s Register, C/UL Class 1, Class 2, etc.
Use environment: relative non-condensing humidity 5 to 95%, operating temperature range 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), storage temperature range -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit).
Functions:
The MVI69-PDPMV1 module can be used to access the processor’s memory and transfer data between the processor and the module.
It can be used as a Profibus main network module and is especially compatible with Profibus Decentralized Peripherals (DP) version 1 industrial networks.
The module supports real-time monitoring and diagnosis functions, which can help users quickly detect and solve communication problems and improve the availability of the system.
