Description
Parameters and specifications
Communication protocol: Support for MODBUS serial /ASCII communication protocol, which is a widely used industrial automation communication standard.
Serial port:

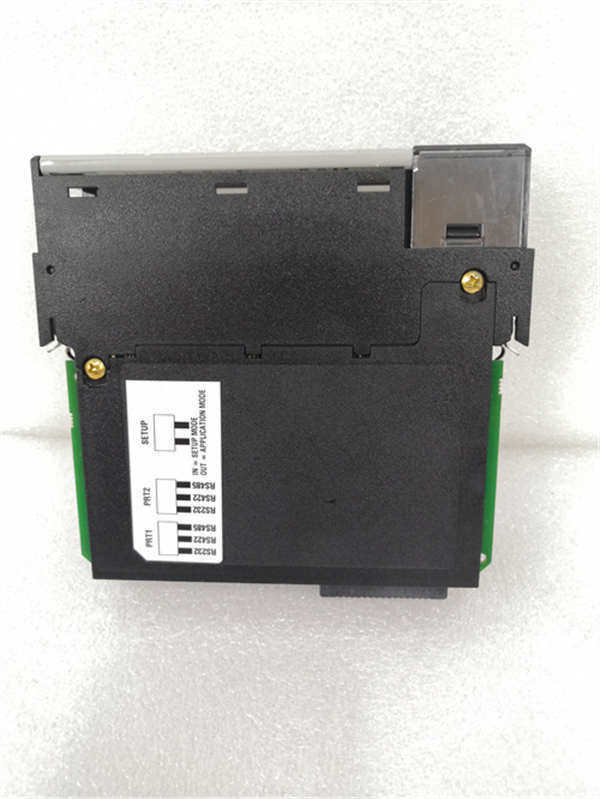

Dual RS232 serial application port with support for RS232/RS485 and RS422 electrical standards.
The baud rate can be configured from 110 baud to 115.2 kbps.
Acceptable serial Settings include none, odd or even parity, data bits 5, 6, 7 and 8, stop bits 1 or 2, and RTS on/off delay of 0-65535 ms.
Ethernet Port: A debugging/configuration port in the form of an RJ45 Ethernet port, supporting 10/100 base-T transfer speeds, with link and active LED indicators and automatic cross-cable detection.

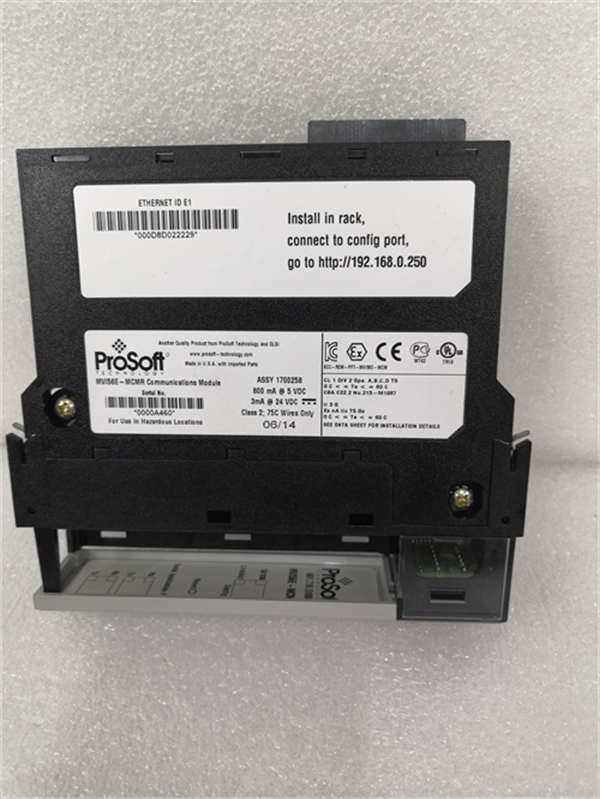

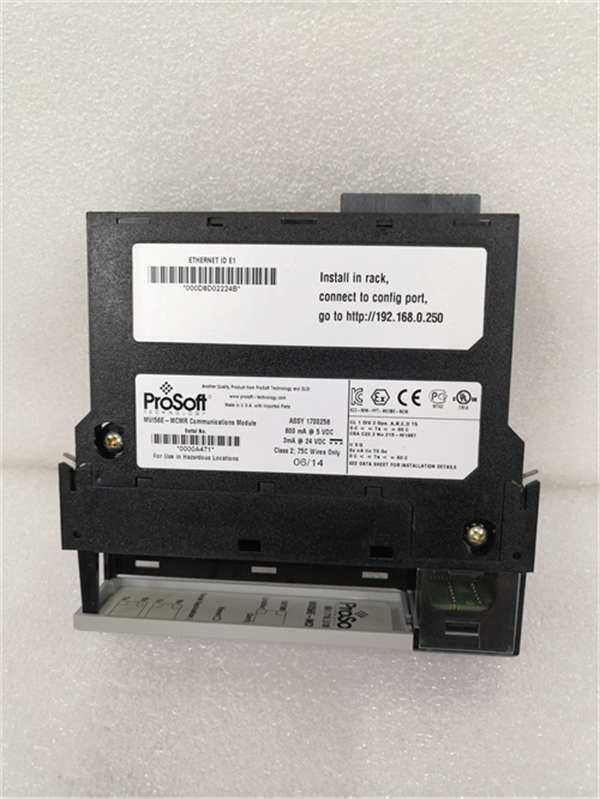

Installation: The MVI56E-MCMR is a single slot module that can be installed directly into any 1756 chassis.
Configuration tools: Use ProSoft Configuration Builder(PCB) and Product Discovery Service (PDS) to configure module operations and parameters.
Power requirements: 800 mA of available power from the Allen-Bradley ControlLogix processor and a 5-volt DC backplane power supply are required, along with an additional 3 mA of current from a 24-volt DC power supply.
Temperature range:
Storage temperature: -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit).
Operating temperature: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
trait
Powerful communication capabilities: Support for MODBUS serial /ASCII communication protocols, which can be easily integrated into existing industrial automation systems.
High flexibility: Supports multiple serial Settings and electrical standards, and can be connected to a variety of different device interfaces.
Easy configuration and maintenance: With RJ45 Ethernet debugging/configuration port, making the module setup and maintenance more convenient and efficient.
