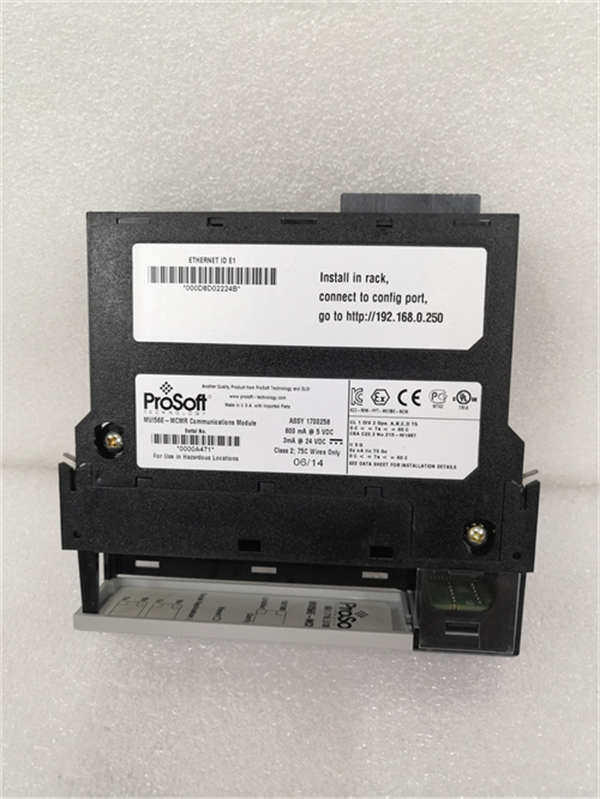

MVI56E-MCMR

Description

argument
Protocol support: Modbus RTU/ASCII, DF1, ASCII, DH485, Modbus TCP/IP, EtherNet/IP, AB CSP, etc.
Communication mode: Support Modbus serial /ASCII communication, equipped with dual RS232 serial application port, support RS232/RS485 and RS422 electrical standards, baud rate can be configured from 110 baud to 115.2 kbps.
Debugging/Configuration port: With an RJ45 Ethernet port supporting 10/100 base-T transfer speeds, link and active LED indicators, and automatic cross cable detection.
specification
Type: Communication module, produced by ProSoft Technologies, one of Allen-Bradley’s partners.
Installation: Single-slot module that can be installed directly into any 1756 chassis.
Power requirements: Users must have an Allen-Bradley ControlLogix processor, a free slot in the rack for Modbus modules, and have 800 mA of available power and a 5-volt DC backplane power supply.
Size and weight
Size: Specific size information is not provided directly, but it can be inferred from the description of its installation as a single-slot module into the 1756 chassis that it is moderately sized.
Weight: approximately 2KG (based on the information provided [5], but please note that this may not be the exact value as the data source and context of [5] may vary).
series
Series: The specific series name is not explicitly mentioned, but it is a communication module produced by ProSoft Technologies and may belong to the same family or category as other communication products of the company.
trait
High-performance communication: supports a variety of communication protocols and modes to adapt to different industrial automation communication needs.
Flexible configuration: Users can flexibly configure each port and parameter of the module to adapt to specific application scenarios.
Backplane function: It can be used as the ControlLogix backplane to display Modbus data as processor I/O data for seamless integration.
Independently configurable serial ports: There are two independently configurable serial ports that support multiple electrical standards and baud rates.
Powerful diagnostic and configuration functions: Equipped with RJ45 Ethernet port for debugging and configuration, high-speed transmission is supported.
Stable operation in harsh environments: A conformal coating protects the module from harsh or corrosive conditions.
Backward compatibility: Backward compatibility with earlier MVI56 modules allows replacement without changing existing controller programs.
effect
Industrial automation: In industrial automation and control systems, MVI56E-MCMR is used to achieve data exchange and communication between equipment to improve production efficiency and management level.
Remote monitoring and management: In the manufacturing industry, energy fields, etc., can be used to establish a remote monitoring system to achieve remote monitoring and management of equipment status and operation.
Energy management and monitoring: In the power, oil and gas and other energy industries, it can be connected to different types of energy equipment to achieve the monitoring and management of energy production, transmission and distribution process.
Building automation: It may be used to connect various controllers and equipment in the building automation system to realize the monitoring and control of lighting, air conditioning, security and other equipment in the building.
Transportation: In the field of traffic signal control system and railway signal system, it can be connected to the controller to achieve remote monitoring and control of traffic lights and rail transit systems.
Environmental monitoring and control: It may be used in environmental monitoring systems to connect various sensors and actuators to achieve monitoring and control of environmental parameters.
Water field: In the field of water treatment, water supply, drainage, etc., it may be used to connect the controller to realize remote monitoring and control of water treatment equipment, pumping stations, etc.
