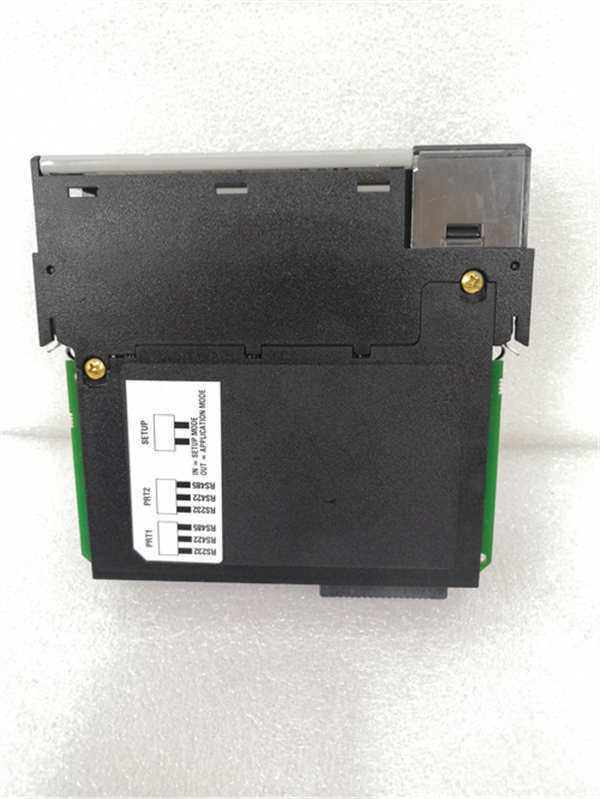

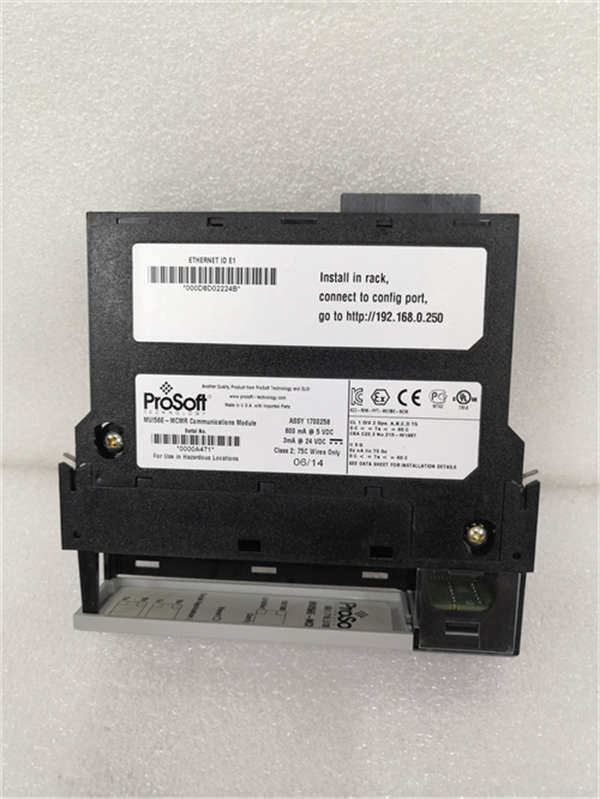

MVI56E-MCM

Description

Size and weight
Size: Depending on the search results, there are two different size data. One is 117mm x 43mm x 129mm and the other is 4.89 inches x 3.53 inches x 1.75 inches (i.e. 12.4cm x 9.0cm x 4.4cm).
Weight: 0.91kg, but please note that the exact weight may vary depending on the production batch and configuration.

trait
Backward compatibility: Allows compatibility with older MVI56 modules and can be replaced without changing existing controller programs.
High-performance communication: supports multiple communication protocols and high-speed transmission, adapting to different application scenarios.
Flexible configuration: Each port can be configured as a master or slave port, providing great flexibility.
Powerful backplane features: can be seamlessly integrated into existing ControlLogix systems so that Modbus data is displayed as processor I/O data.
Stable operation in harsh environments: A conformal coating protects it from harsh or corrosive conditions.
Powerful additional features: Support for module configuration stored in RSLogix without additional programming or configuration software.

argument
Communication protocols: Support Modbus RTU/ASCII, Modbus TCP/IP, EtherNet/IP, DF1 and other communication protocols.
Operating temperature: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), there are also references to -40 degrees Celsius to 85 degrees Celsius, which may be related to the working range of different models or application scenarios.
Storage temperature: -40℃ to 85℃.
Backplane load: 800 mah at 5 volt DC and 3 mah at 24 volt DC.
Database capacity: A 10,000-word database that allows more data to be collected from other devices.
specification
Design use: Mainly used in standard process applications, such as semiconductor, precision 3C, precision measurement and other fields.
Computing power: Equipped with four 32-bit RISC processors and an embedded double-precision floating-point processor, it has very high computing power.
