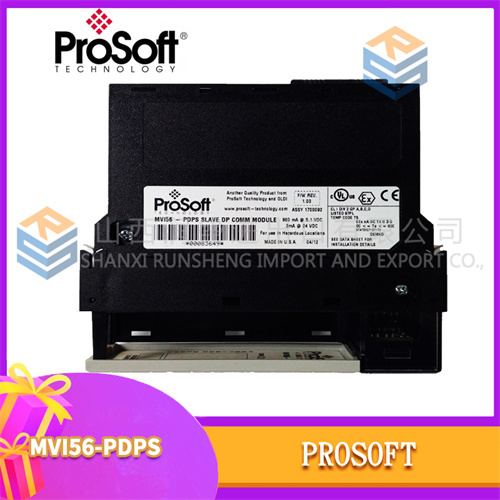

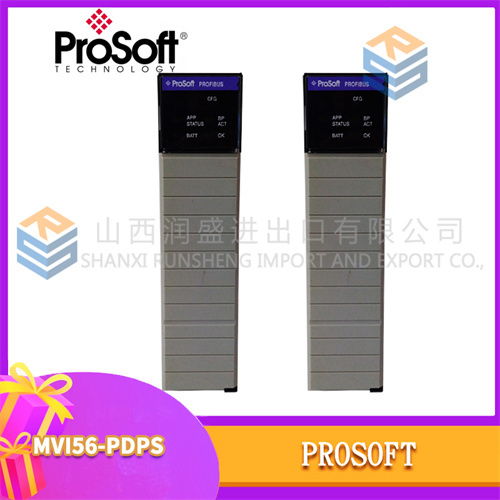

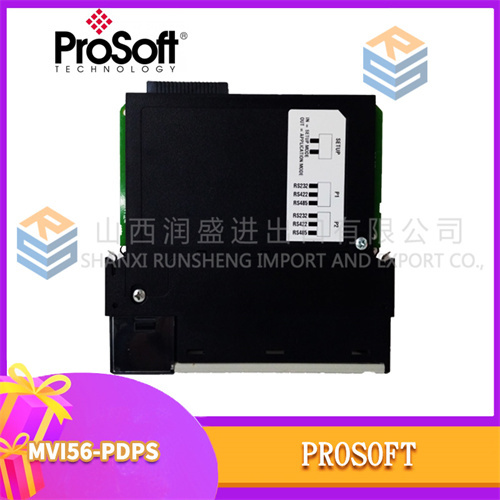

MVI56-PDPS

Description

argument
Data rate: Support PROFIBUS DP protocol, data rate up to 384000 bps.
Power supply: 24 VDC, support PLC power supply or external power supply.
Power consumption: The maximum power is 3.5W, and it is also said that the power consumption is 2 watts.
Operating temperature: usually -40°C to +70°C, it is also said to be -20°C to 70°C.
Storage temperature: -40°C to 85°C.
Humidity: 5% to 95%RH, non-condensing.
specification
Interface type: Supports the Profibus DP protocol and provides RS-485 interfaces.
Configuration software: Equipped with ProSoft Configuration Builder software, to achieve convenient parameter configuration and diagnosis functions.
Size: 44mm × 118mm × 139mm
Weight: About 0.18kg
trait
Multi-protocol support: Supports a variety of communication protocols, such as PROFIBUS DP Slave and Modbus TCP/IP, Modbus RTU/ASCII, etc.
High-performance communication: with high-speed and reliable communication capabilities, it can achieve fast data transmission and response.
Flexible configuration: With flexible configuration options, it can be customized and set according to specific communication requirements.
