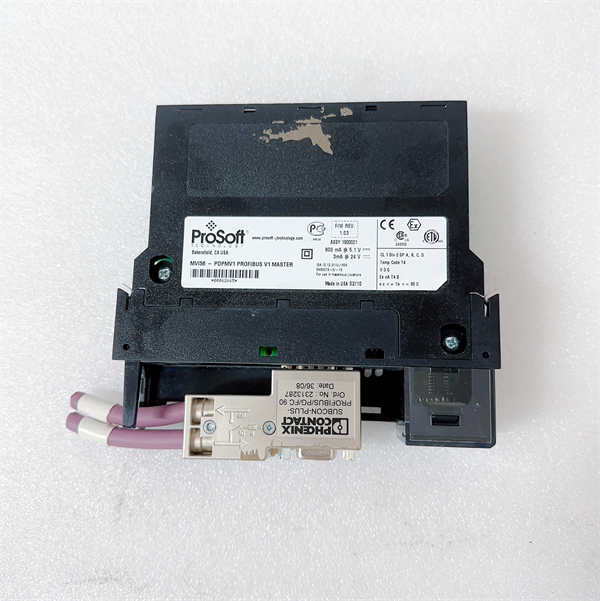

MVI56-PDPMV1

Description

series
Mvi56-pdpmv1 belongs to MVI56 series industrial automation communication module.
trait
Multi-protocol support: supports a variety of communication protocols, such as PROFIBUS DP-V0/V1, and can communicate with different brands or models of controllers and devices.
High performance: Using high performance processor and memory, fast data calculation and processing, to meet the needs of complex control algorithms and data processing.
Flexibility and scalability: supports a variety of different communication protocols and control methods, can be combined and extended with other devices, convenient for users to integrate and control the system.
High stability and reliability: Excellent performance in various industrial environments, suitable for complex industrial application scenarios.
Easy to use and maintain: the design is simple, easy to operate and maintain, and users can quickly and easily install and debug.

Parameters and specifications
Model: MVI56-PDPMV1
Brand: ProSoft Technology
Type: PROFIBUS DP-V1 main network interface module
Compatible platform: ControlLogix
Communication mode: PROFIBUS DP-V1
Data transfer rate: 9600 bps to 12 Mbps
Number of nodes: Up to 31 (or up to 125 slave devices, depending on the description)
Connection type: 9-pin D connector
Size and weight
Size: There are different claims, it may be 320×240×150mm, it may be 175 mm x 89 mm x 25 mm, and there is another claim that 32×52×14mm. The exact size may vary depending on the product version or measurement method.
Weight: about 1.2kg, some say 0.35kg.

effect
Connection and integration: MVI56-PDPMV1 is usually used to connect and integrate different brands of industrial automation equipment and control systems to achieve effective data transmission and integrated control.
Data acquisition and monitoring: It can be used to collect data from various devices and sensors and send it to a central control system or data acquisition system for monitoring and analysis.
As a communication interface: The Allen-Bradley ControlLogix processor is connected to the PROFIBUS network to achieve data communication between the processor and the slave device.
