Description
Parameters and Specifications:

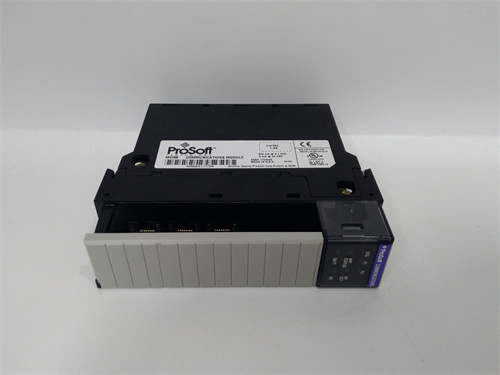

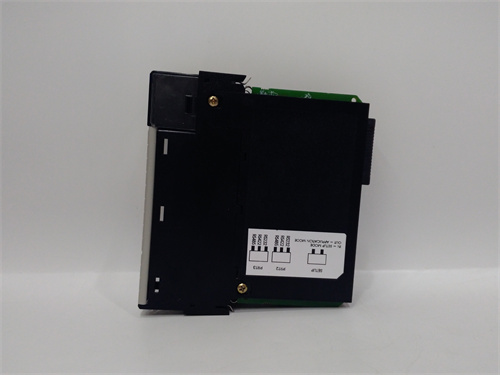

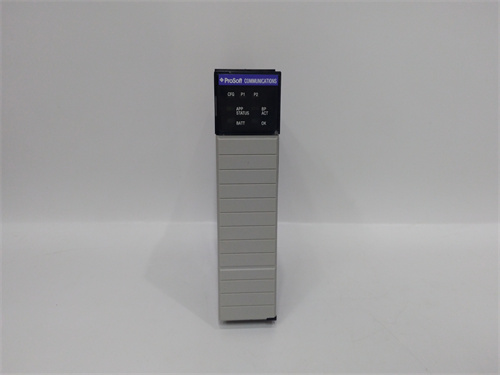

The MVI56-MDA4 module serves as an input/output module between the CM4 network and the Rockwell Automation backplane.
It allows data transmission between the ControlLogix processor and CM4 network, which is asynchronous.
It has a 5000-word register space for data exchange between the processor and CM4 network.
Dimensions and Weight:
The dimensions are 3.5x14x14.5cm.
The weight is 0.24kg.
Series:
The MVI56-MDA4 belongs to the MVI56 series.
Features:
It supports up to 5000 registers for storage and transmission.
It has two fully configurable serial ports, each supporting CM4 master functions, and a total of 10 CM4 units per module.
It supports binary, integer, ASCII, and floating-point data types.
It comes with predefined memory mapping to facilitate ladder logic programming.
Functions:
The MVI56-MDA4 enables the Rockwell Automation ControlLogix processor to connect seamlessly with MDA Scientific CM4 gas monitoring hardware.
It allows CM4 commands to be issued to other nodes on the CM4 network.
It supports four read commands and five write commands for interacting with CM4 devices.
