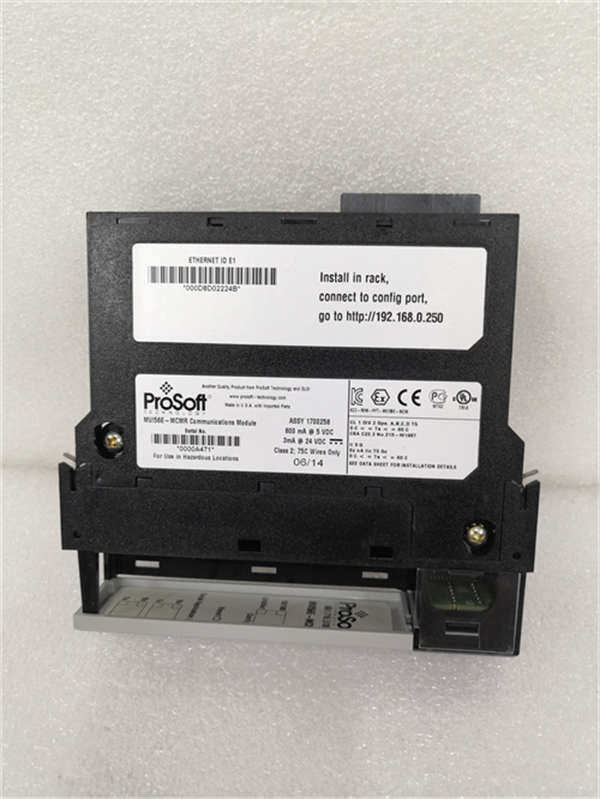

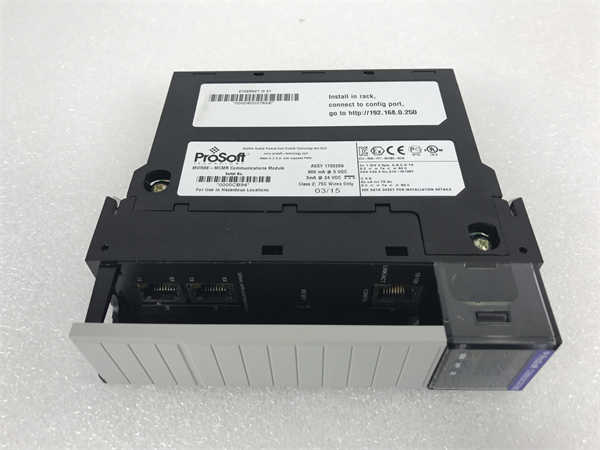

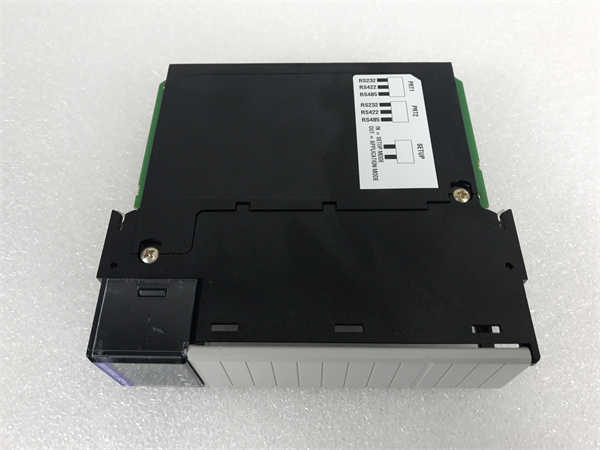

MVI56-MCMR

Description

specification
Dimensions: 7.1 x 12.7 x 2.5 cm.
Weight: about 0.2 KG, there are also references to the weight of 0.1KG, the specific may vary slightly depending on the product batch or model.
Applicable network: ControlNet, EtherNet/IP.

trait
Dual RS232 serial ports: Support for RS232/RS485 and RS422 electrical standards, providing greater flexibility and compatibility.
Flexible serial Settings: including none, odd or even parity, data bits 5, 6, 7 and 8, and stop bits 1 or 2.
RJ45 Ethernet debugging/Configuration port: Supports 10/100 base-T transfer speeds with link and active LED indicators and automatic cross-cable detection.
Support for Modbus function codes: The MVI56-MCMR module accepts Modbus function code commands 1, 2, 3, 4, 5, 6, 8, 15, 16, 17, 22, and 23 from connected Modbus master devices.
Optimized polling feature: The master port has an optimized polling feature that reduces the frequency of polling the slave station that has communication problems.
Support for remote chassis installation: Simplified data blocks are actually used for remote chassis installation when used with ControlNet communication adapters and redundant controllers.
CF card options: Used to store configuration Settings for all users and facilitate quick on-site transfer of all Settings and data.

effect
Industrial automation and control system integration: The MVI56-MCMR module plays a key role in industrial automation and control systems, enabling data exchange and communication between devices.
Connecting different networks: It is suitable for connecting ControlNet and EtherNet/IP networks to achieve seamless connection and communication between networks.
Improve production efficiency: Improve production efficiency and management level by realizing data sharing, remote monitoring and control between devices.

argument
Operating temperature range: The storage temperature range is -40°C to 85°C, and the operating temperature range is -40°C to 70°C in some documents, which should be based on the actual use environment and product manual.
Input voltage: 10-30 VDC.
Communication speed: 5 Mbps, in addition, the module also supports MODBUS serial /ASCII communication, the baud rate can be configured from 110 baud to 115.2 kbps.
Communication distance: 100 meters.
Communication protocol: CIP, but also support MODBUS communication protocol.
