Description

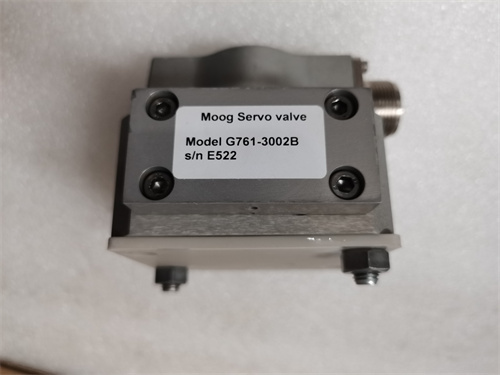

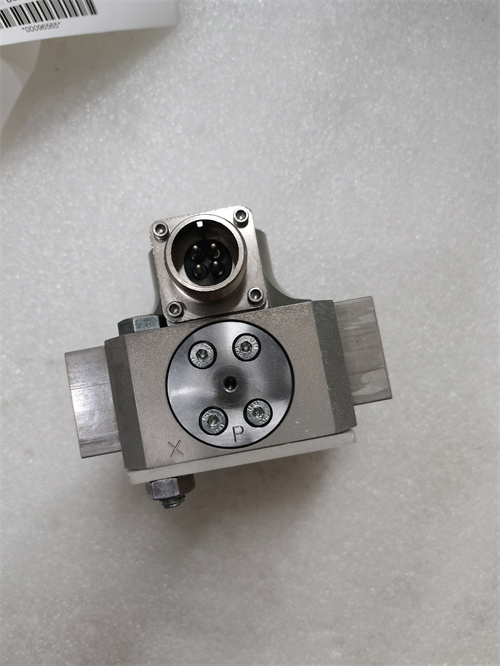

MOOG G761-3002B is a high-performance, two-stage electro-hydraulic servo valve that belongs to the G761 series. This servo valve is primarily used as a three-way or four-way throttle-type flow control valve, with better control performance when used as a four-way valve.
Parameters and Specifications:
Maximum Working Pressure: 315 bar
Frequency Response: 90 ~ 180 Hz (-3db at /-10% signal)
Step Response: 6 ~ 9 msec (when the valve axis moves from 0 to 100% full opening, with a guiding pressure of 210 bar)
Resolution: < 0.5%
Magnetic Hysteresis: < 3%
Nominal Flow Rate: Ranges from 4L/min to 63L/min at a rated pressure drop of 7Mpa
Operating Temperature: -29℃ to 135℃
Seal Material: Fluororubber
Working Medium: Petroleum-based hydraulic oil or other fluids as needed
Recommended Oil Viscosity: 0-450SUS@38℃
Dimensions and Weight:
Size: Not specifically mentioned, but generally compact for easy integration
Weight: 2.15KG
Series:
The MOOG G761-3002B belongs to the G761 series of high-performance, two-stage electro-hydraulic servo valves.
Features:
Robust and Reliable: Designed for long-term, dependable performance
High Control Precision: Offers precise control over fluid flow
Fast Response: Able to quickly adjust to changes in input signals
Versatile: Can be used in a variety of industrial applications
Applications:
MOOG G761-3002B servo valves are widely used in industries such as aviation, aerospace, shipping, metallurgy, and chemicals. They are often employed in critical quality control systems where precise fluid control is essential for product quality and safety.
Please note that the specific parameters, specifications, dimensions, weight, and features of the MOOG G761-3002B may vary depending on the manufacturer and application. It is always advisable to refer to the manufacturer’s official documentation or contact a sales representative for the most accurate and up-to-date information.
