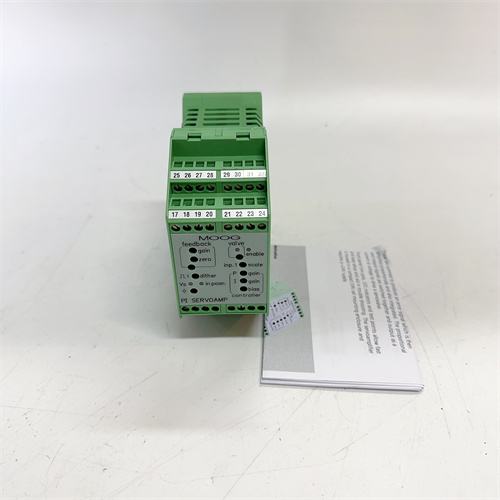

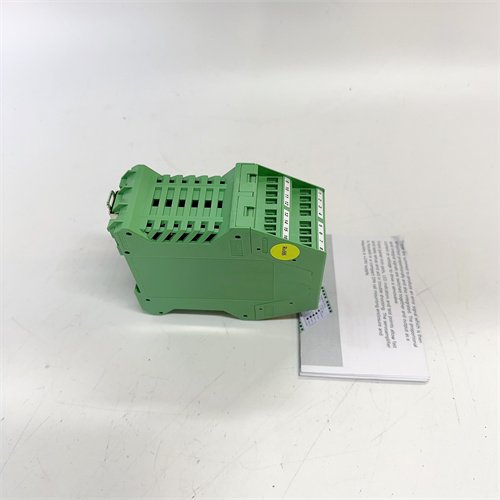

MOOG G122-824-002

Description

Parameters and Specifications

• Input Voltage: 12-24V DC
• Maximum Current: 5A
• Maximum Power: 120W
• Communication Interfaces: CAN and RS232
• Control Algorithm: PID (Proportional-Integral-Derivative)
• Operation Mode: Silent¹

Dimensions and Weight

• Dimensions: 2004050mm (Length x Width x Height)²
• Weight: 0.50 pounds³

Series

• MOOG G122-824-002 is a specific model within MOOG’s range of servo amplifiers and motion controllers.

Features

• High Performance: Utilizes advanced electronics and algorithms for efficient data processing and control instruction handling, improving system response speed and efficiency⁴⁵.
• Closed-Loop Control: Suitable for applications requiring proportional and/or integral amplifiers for precise closed-loop control⁵.
• Selectable Control Modes: Selector switch allows users to choose between proportional, integral, or both³.
• User-Friendly: Front panel with LEDs and test points for easy setup and troubleshooting³⁵.
• Multiple Input Options: Supports single-ended, scalable zero differential, gain differential inputs, and feedback sensor excitation⁵.
• High Reliability: High-quality materials and manufacturing processes ensure stable operation in harsh environments³⁵.
• Flexible Configuration: Allows customization of channel configuration, communication interface selection, and control algorithm implementation⁵.

Role and Applications

• Role: A high-performance, high-precision servo amplifier and motion controller¹⁴⁵.
• Applications: Widely used in various industrial applications requiring precise control and monitoring, including robotics, automated production lines, and medical equipment¹⁴.
