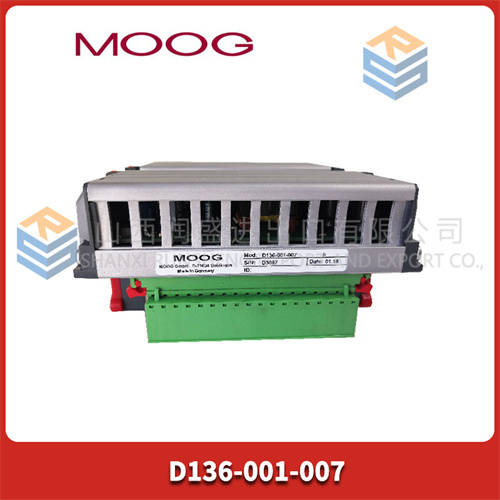

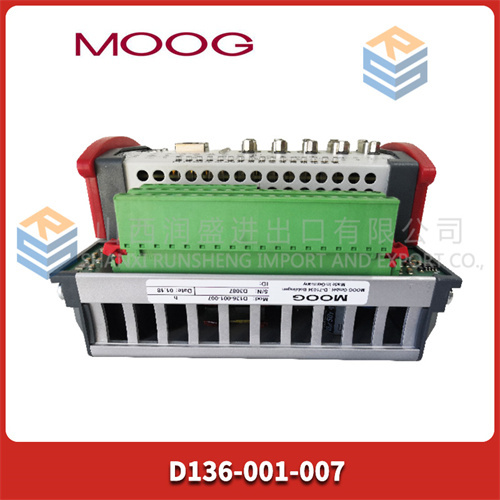

MOOG D136-001-007

Description

Parameters and Specifications:

• Model: D136-001-007
• Manufacturer: MOOG
• Type: Servo Controller MSC
• Interface: Profibus-DP
• Processor: PowerPC processor, 32-bit, RISC architecture with floating-point unit
• Memory: 4 MB flash EEPROM; 4 MB RAM
• Temperature Range (Operating): +5°C to +55°C
• Temperature Range (Storage): -25°C to +70°C
• Relative Air Humidity: 10% to 95% (non-condensing)
• Operating Height: Up to 2000 meters
• Storage/Transport Height: Up to 3000 meters

Dimensions:

• Width x Depth x Height (mm): 160 x 170 x 85.5 (Attachment size: W=149/154.5)

Weight: Not specifically mentioned in the search results.

Series: Not explicitly specified as a series, but part of MOOG’s servo control solutions.

Features:

• Programmable Multi-Axis Controller: Allows for flexible programming using IEC 61131 development environment.
• Integrated PLC Functionality: Provides PLC-like capabilities for fast and precise control.
• High-Resolution Analog I/O: Handles complex multi-axis functionality.
• Modular Design: Allows for easy system integration and configuration.
• Fieldbus Interface: Supports Profibus DP for connectivity with other systems.
• Diagnostics and Monitoring: Provides LED indicators for status and error display.

Application/Role:

MOOG D136-001-007 is a high-performance servo controller designed for precise control in industrial automation applications. It is capable of closed-loop control for speed and position, with up to 30 axes. The servo controller features PLC functionality, fieldbus interfaces, and high-resolution analog I/O, making it suitable for a wide range of applications requiring fast and accurate motion control, such as electric and hydraulic drives
