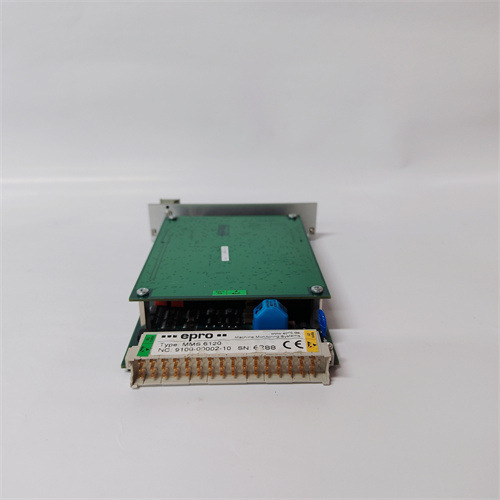

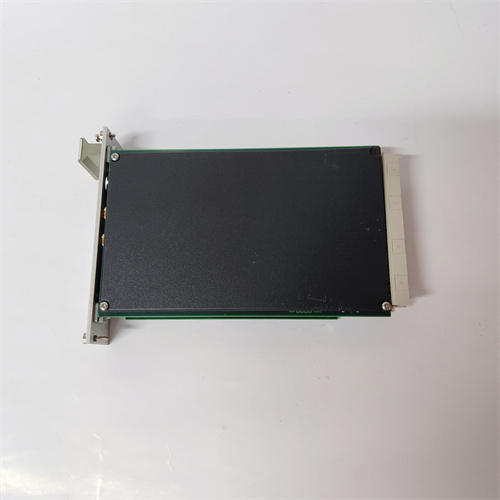

MMS6120

Description

Parameters and specifications
Number of channels: Dual channels.
Measured variables include vibration velocity (SO-P; SP-P) and elongation (SO-P; SP-P).
Frequency range: 5/10… 1000Hz, according to DIN 45670.
Power supply voltage: +24 VDC redundancy.
Output type: includes VRMS (Veff) root mean square value vibration velocity and Sop (Zero peak) vibration displacement.
Design standards: meet common international standards, such as API670, VDI2056, VDI2059.
Size and weight
Weight: About 0.1kg.
trait
High precision measurement: The electric speed sensor can accurately measure the bearing vibration.
Dual channel design: Bearing vibration data of both channels can be monitored at the same time to provide comprehensive equipment operating status information.
Flexible configuration: Supports multiple working modes. Users can flexibly configure parameters based on actual requirements.
Data processing capability: Built-in microprocessor can process, analyze and store measurement data in real time, and support advanced functions such as spectrum analysis.
Rich interface: Provides RS232/RS485 interface, convenient for users to perform on-site configuration and remote communication.
Alarm function: The module provides alarm function, which can monitor the working status of the sensor and module in real time to ensure the stability and safety of the system.
