Description
trait
High precision and sensitivity sensor: can accurately capture the vibration signal of the bearing
Real-time vibration detection: including vibration amplitude, frequency and waveform
Intelligent analysis function: real-time processing and analysis of vibration data
Multi-parameter monitoring: In addition to vibration monitoring, it can also monitor bearing temperature and lubricating oil conditions and other parameters
Protection function: input overload protection, output overcurrent limit protection, output current for a long time short circuit protection
Dual channel: Two independent electrodynamic speed sensor inputs can be received and converted into two independent outputs
argument
Voltage: 24V
Current: 100-400A (However, please note that this current range may refer to the operating current under certain conditions, and the current value may vary when used)
Output frequency: 60Hz
Sensor input: Two independent electric speed sensor inputs, such as the epro PR9266/… And PR9268/… series
Measuring range: Select the vibration speed range by toggle the switch (such as 0… 5/10/25/50/100mm/s) or amplitude range (such as 0… 25/50/100/125/250/500μm)
Temperature drift: zero: < 0.05%/K; Gain range: < 0.01%/K
Time drift: zero: < 0.01%/24 hours; Gain range: < 0.01%/24 hours
specification
Instrument category: EPRO transmitter

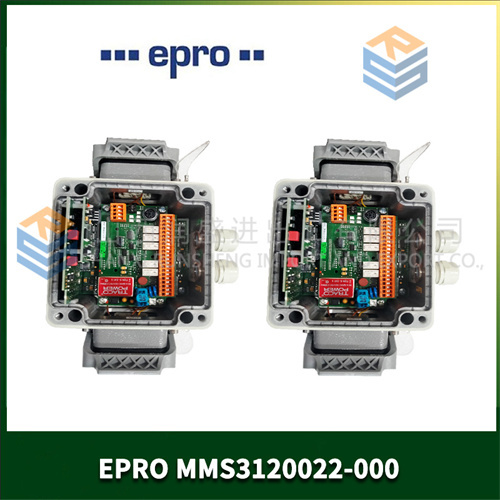

Model: MMS3120/022-000
Size: 127.5mm×125.75mm×80mm (width × height × thickness)
Size and weight
Size: 127.5mm×125.75mm×80mm (width × height × thickness)
Weight: About 1300 g (net weight), about 1500 g (gross weight)
series
The MMS3120/022-000 is one of the MMS3000 transmitter series
effect
Monitoring bearing vibration: Used to measure and process bearing vibration signals to monitor the vibration level of mechanical equipment
Condition monitoring: Monitoring bearing status, including temperature, lubricating oil conditions and vibration anomalies, in order to detect potential faults or anomalies in a timely manner
Data output: Provides output of vibration data for connection to data acquisition systems or monitoring equipment for real-time monitoring and analysis
Alarm and alarm: When the vibration level or bearing status exceeds a predetermined threshold, an alarm or alarm can be triggered to alert the operator to take appropriate action
