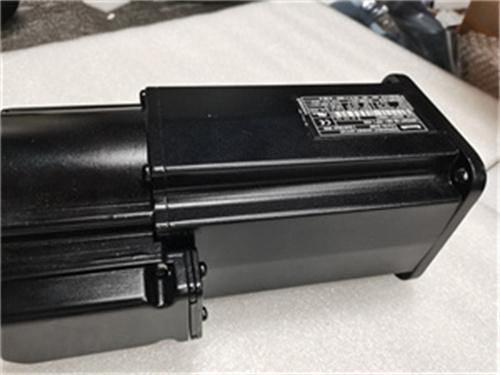

MKD071B-061-KP1-KN

Description

3. Series
​
The MKD071B-061-KP1-KN belongs to the MKD series, a series of servo motors co-produced by Rexroth and others, designed for applications that require high precision and reliability.
​
Step 4: Characteristics
High precision: Thanks to the rotary transformer feedback system, high precision position and speed control can be achieved.
High durability: As a three-phase synchronous permanent magnet motor, it has long life and reliability, suitable for long-term continuous operation.
Environmental adaptability: The completely enclosed design allows it to be used in flushing environments and in environments where there is a risk of explosion.
Multiple configuration options: A wide range of options are available, such as holding brakes, keyways and single or multi-turn encoder systems.

Step 2: Size
​
Regarding the specific size information of the MKD071B-061-KP1-KN, especially the frame size and length, it is mentioned that the frame size is 071, and B indicates that this is a longer length version. However, more detailed dimensional information (such as diameter, height, etc.) may need to consult the specific product manual or contact the supplier to obtain.

1. Parameters and specifications
Winding code: 61, this is the number that specifies the electrical characteristics of the motor.
Feedback system: Equipped with a rotary transformer motor feedback system, it provides accurate position and speed feedback, which is essential for achieving high precision control.
Drive mode: Driven by an optical shaft with a key, according to DIN6885-1, and with a shaft seal ring, suitable for use in demanding mechanical interfaces.
Lock torque: 22Nms, to ensure that the load position can be maintained when there is no power supply.
Rated voltage: 400V.
Rated frequency: 50/60 Hz.
Protection class: IP65.
Weight: 10.5kg.
