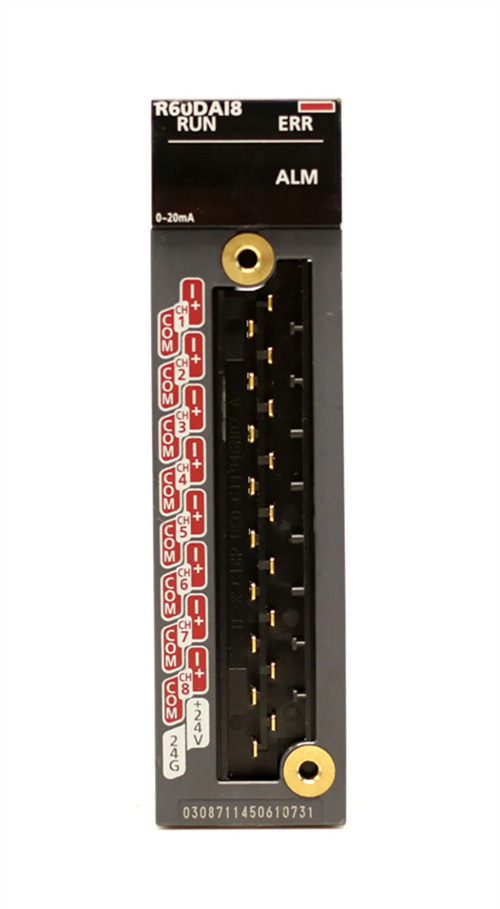

The MITSUBISHI R60DAI8 is a high-performance analog output module specifically designed for industrial automation systems. Here is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Model: R60DAI8
Series: Mitsubishi iQ-R Series
Number of Channels: 8 analog output channels
Output Range: 0~20mA or 4~20mA (DC)
Resolution: Varies depending on the output range (e.g., 625.0nA for 0~20mA range)
Accuracy: ±0.1% or ±0.3% depending on the environmental temperature
Conversion Speed: Typically 80μs/CH for waveform output mode
Insulation: Photocoupler isolation between input/output terminals and PLC power supply, transformer isolation between external power supply and analog output
Dimensions and Weight:
Dimensions (H x W x D): 106mm x 27.8mm x 131mm (H: 98mm for the base installation part)
Weight: Specific weight information is not provided in the available references. It is advisable to consult the official product documentation or contact Mitsubishi directly for accurate weight specifications.
Series:
The R60DAI8 belongs to the Mitsubishi iQ-R Series of analog output modules, which are known for their precision, reliability, and performance in industrial automation applications.
Features:
High Precision: The module offers high-precision analog output, making it suitable for demanding industrial automation tasks that require precise control.
Flexible Output Ranges: The ability to select between 0~20mA and 4~20mA output ranges allows for greater flexibility in different applications.
Excellent Accuracy: The module maintains high accuracy, even under varying environmental conditions, ensuring reliable performance.
Robust Insulation: The insulation features, such as photocoupler isolation and transformer isolation, provide enhanced protection and reliability.
Role and Function:
Control and Regulation: The R60DAI8 serves as a crucial component in industrial automation systems, providing precise analog output signals for controlling and regulating various devices and processes.
Signal Conversion: It converts digital signals from the PLC into analog output signals, enabling seamless integration with analog devices and systems.
Monitoring and Feedback: By providing analog output, the module allows for continuous monitoring and feedback of industrial processes, enabling precise control and optimization.
