Description

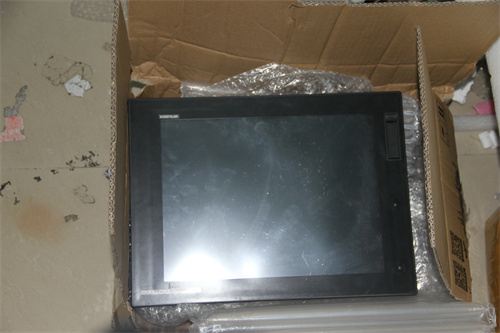

The MITSUBISHI GT1695M-XTBD is a 15-inch touchscreen display module from the GT1600 series, designed for industrial automation and control applications. Here is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Display Size: 15 inches.
Resolution: Typically 1024 * 768 pixels, but some sources indicate 800*600dpi.
Display Type: TFT color LCD.
Color Depth: 65536 colors.
Memory: User memory capacity of 15MB, which is an upgrade from the previously standard 9MB.
Dimensions and Weight:
Dimensions: Approximately 397mm (W) x 296mm (H) x 61mm (D).
Weight: Typically around 5.0kg, but exact weight may vary
.
Series:
Belongs to the GT1600 series of touchscreens, which represents the high-end offering from Mitsubishi for touch-based HMI (Human-Machine Interface) solutions.
Features:
Interface Options: Includes built-in Ethernet, RS-422/485, and RS-232 interfaces, allowing for connection to multiple FA (Factory Automation) devices simultaneously.
Practical Functions: Offers multi-channel functionality, document display capabilities, and Q/QnA ladder diagram monitoring without the need for additional option boards.
Touch Panel: Features an analog touch panel with clear and crisp display quality, eliminating any grid-like patterns.
Expanded Connectivity: Supports USB host and USB device ports.
Robust Design: Suitable for use in environments with temperatures ranging from 0°C to 50°C and with a relative humidity of 10-90%RH.
Role/Function:
The MITSUBISHI GT1695M-XTBD touchscreen serves as the user interface for industrial automation systems, allowing operators to monitor and control various processes and equipment.
It provides a visual representation of the system’s status, enabling operators to interact with the system through intuitive touch-based controls.
The touchscreen’s advanced features, such as its large display size, high resolution, and multiple interface options, enhance the user experience and make it easier to perform complex tasks and monitor system performance.
Please note that for specific and accurate information on the MITSUBISHI GT1695M-XTBD, including its exact parameters, specifications, dimensions, weight, and other details, it is recommended to consult the official Mitsubishi product documentation, technical manuals, or contact the manufacturer directly.
