Description
Specifications and dimensions

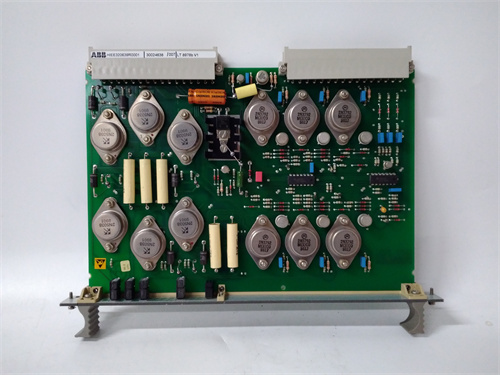

Model : LT8978b V1 HIEE320639R0001
Dimensions : 310W x 142H x 245D (mm)
weight
weight : about 4.1kg
Key parameters
Frequency range : 1kHz ~ 100 KHZ, 1kHz/STEP
period ratio range : 5% ~ 95%, 5%/STEP
External trigger voltage range : ±15V
external trigger sensitivity : DC ~ 25MHz:~50mV; 25MHz ~ 100MHz:~100mV
Function and application
Purpose : digital output module, used to adjust the test bar signal.
Application scenario : May be used in industrial automation, measurement and other fields.
other
Control Panel function : automatically set “Autoset”, can automatically adjust the vertical system, horizontal system and trigger level.
Save/call function : Provides the save/call function for 15 groups of measurement conditions and 2 groups of waveforms.
Power supply : AC 100V~240V, 47~63Hz.
