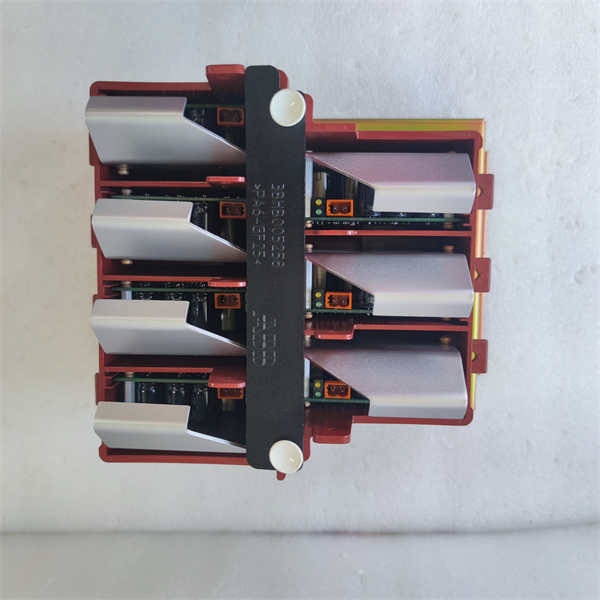

KUC711AE

Description

argument
Implementation standard: QB/441600 17 079-2001
Accuracy: 0.2%, 0.5%
Power consumption: ≤3VA
Job stability: annual change < 0.2%
Power frequency withstand voltage: AC2.0kV/min.1mA
Insulation resistance: ≥ 20MΩ (DC500V)
Impulse voltage: 5kV(peak), 1.2/50μS
Response time: ≤350ms
Input range: DC0 to 5A, DC0 to 500V Optional
Output signal: DC0~5V, 1~5V, 0~20mA, 4~20mA, etc
specification
The KUC711AE101 module, a key component of ABB’s Symphony Plus system, features two separate communication channels, each with a bandwidth of 100Mbps, support for dual Ethernet ports and redundancy over Link Aggregation Control Protocol (LACP).
dimension
Dimensions: 55mm× 75mm ×120mm
weight
Weight: 2KG
High reliability: Robust and reliable design to withstand the harsh environmental conditions common in industrial environments.
Efficient communication: Provides high-speed, reliable communication capabilities, supports dual communication channels and redundant functions.
Versatility: It can be used in a variety of industrial automation and control applications, such as power generation, oil and gas, and chemical processing industries.
Easy installation and maintenance: Supports DIN(35mm) rail and M4 screws for easy installation and replacement.
