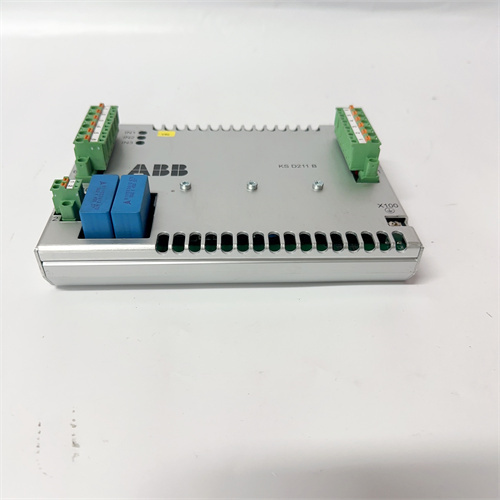

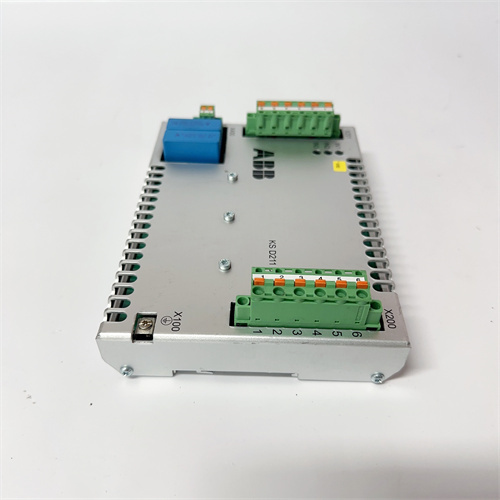

KSD211B

Description

trait
Integration of multiple functions: KSD211B 3BHE022455R1101 integrates digital input and output functions such as optical isolation digital input, photoMOS relay output, relay contact and collector open circuit output.
Signal processing: Support signal isolation and signal conversion functions, which can protect the main controller or processing unit from noise and interference on the sensor line, and convert different types of sensor signals into standard signal formats.
Programming and configuration: Support DCON and Modbus RTU protocols, and remote control through RS-485 serial bus, convenient user programming and configuration.
High performance: Equipped with a high-speed processor, able to quickly process large amounts of data and complex control algorithms.
Modular design: Support a variety of input and output modules, flexible configuration to suit different application scenarios.
Network compatibility: Supports Ethernet, Modbus, Profibus and other communication protocols for easy integration with other devices and systems.

argument
Input voltage: 24V DC (some information mentions 220 VAC, but most information points to 24V DC).
Output voltage: 0 ~ 10V DC.
Maximum load current: 2A (some information mentions 5A, but may vary by model).
Communication interface: RS485.
Input/output resolution: 12 bits.

Working temperature:
-20°C to 60°C (some information)
-40℃~ +85℃ (another part of the information)
specification
Model: KSD211B.
Part number: 3BHE022455R1101.
Compatibility: Compatible with ABB automation systems.
Isolation: 1500V AC.
Size and weight
Size:
100mm × 80mm × 30mm (some information)
100mm × 70mm × 35mm (another part of information)
Weight:
0.5kg (partial information)
200g (additional information)
