Description
Parameters and specifications:
Features:
Up to 32 individual channels.
Dual serial process bus (SPBus) interface, allowing optional redundancy.
Each SPBus interface ensures electrical isolation from the control system.
Anti-short circuit loop current driver.
When communication is interrupted, the output can be safely started.
Line fault detection (LFD) and Ground fault detection (EFD).
Meets SIL 1 standards.
Technical specifications:
Input/output channels: 32.
Input voltage: 24 VDC +/ -20.
Input loop current: Max. 4 mA (at 24 VDC loop voltage).
Digital output loop driver: 1 A, short-circuit proof “high voltage side” driver (HSD).

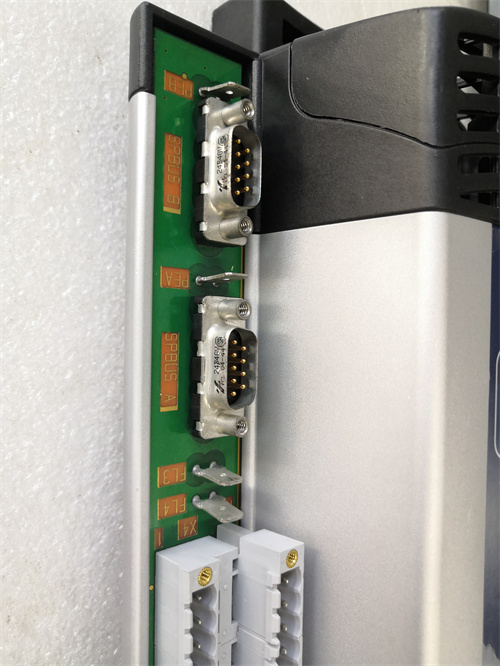

SPBus interface: 2, type RS-485 (multiplex transmission), frequency up to 2 MHz, signal coding to Manchester coding (self-clock).
Size and weight:
Size:
Height: 355 mm.
Width: 158 mm.
Depth: 87 mm.
Weight: 1.35 kg.
Series:
The Kongsberg RDIOR 400 is part of the Kongsberg Maritime automation system, specifically related to the interface between the Serial Process bus (SPBus) and digital input/output signals.
Features:
Cost-effective: Provides a cost-effective solution for connecting any number of inputs and outputs to Kongsberg Marine automation systems, regardless of the distance between remote devices and controller computers.
Easy installation and replacement: DIN standard rail mounting and plug-in connection for easy installation and replacement.
Diagnosis and fault identification: Built-in test functions for self-diagnosis and fault identification.
Security: When communication is interrupted, the output can be safely started and has an anti-short-circuit loop current driver.
Functions:
Kongsberg RDIOR 400 is an interface module mainly used to connect the serial process bus (SPBus) to the digital input or output signals of field devices. It provides the ability to perform remote input/output signal processing in Kongsberg Marine automation systems, thereby supporting various automation and control functions.
