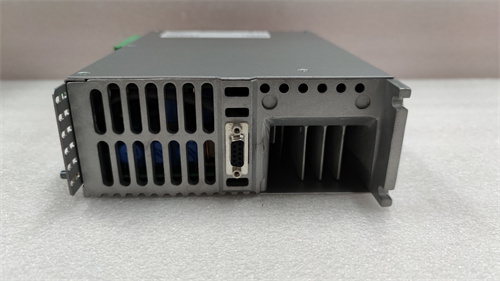

KOLLMORGEN SERVOSTAR 310

¥8,415.00

Parameters and specifications:
Rated current: 10A RMS.
Rated voltage: The range is between 110-230V, and there is also information that its rated voltage range is 200-480V.
Control accuracy: Position control accuracy is less than 1 arc-min, speed control accuracy is less than 0.01% (based on rated load).
Response time: As low as 0.6ms (based on 20% load variation).
High speed movement: up to 8,000 RPM (depending on the type of motor chosen).
Output current: The maximum continuous output current can reach 30A.
Category:

Description

Parameters and specifications:
Rated current: 10A RMS.
Rated voltage: The range is between 110-230V, and there is also information that its rated voltage range is 200-480V.
Control accuracy: Position control accuracy is less than 1 arc-min, speed control accuracy is less than 0.01% (based on rated load).
Response time: As low as 0.6ms (based on 20% load variation).
High speed movement: up to 8,000 RPM (depending on the type of motor chosen).
Output current: The maximum continuous output current can reach 30A.
Size and weight:
Dimensions: Specific 3D dimensions such as length, width, and height may vary from model to model, but one model S31061-SE-SB measures 26159mm.
Weight: One supplier gave a weight of 2KG

Series:
The SERVOSTAR 310 is a product model under the KOLLMORGEN brand and may belong to the S300 series of digital brushless servo drives.
Features:
High performance: With high precision, high response speed and high dynamic performance, it meets the strict requirements of motion control in various industrial applications.
Communication interface: Support a variety of communication interfaces, such as analog interface, digital interface, CAN bus, EtherCAT, etc., to facilitate communication and data exchange with the host computer or other control systems.
Protection function: With a variety of protection functions, such as overload protection, overheat protection, overcurrent protection, etc., to protect the servo amplifier and servo motor from damage.
Flexible programming: Parameters can be set and adjusted through programming software, supporting a variety of motion control algorithms and modes.
Compact structure: Suitable for 200mm switchgear, small footprint, help to save space, very suitable for limited space occasions.

Functions:
It is used to control the motion of servo motor and realize the functions of position closed-loop control, speed control and force control.
Widely used in machining, automatic assembly, robots, printing equipment, packaging machinery and other industrial fields of motion control system.
