1. Product Description

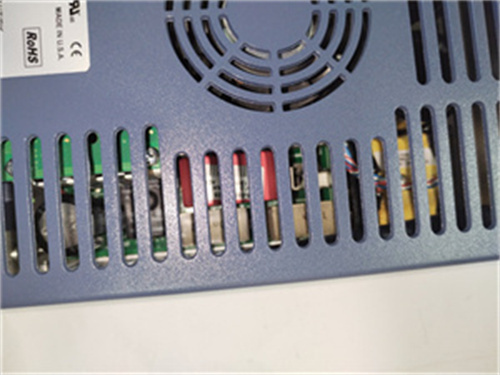

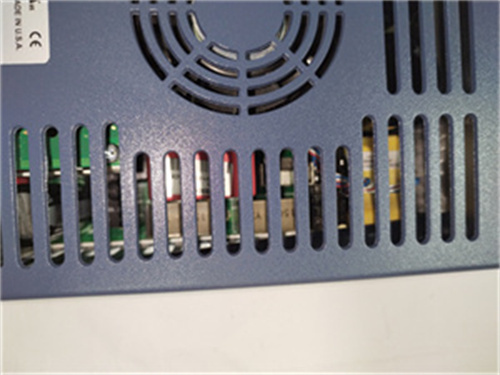

KOLLMORGEN S22460 – SRS is a servo driver designed for motion control applications in industrial automation systems3. It can accurately control the speed, position, and torque of motors, enabling complex motion trajectory control3. The S22460 – SRS supports high – resolution encoder feedback, which can obtain real – time motor position information, enhancing system positioning accuracy and motion smoothness3. It also features multiple communication interfaces like EtherCAT and CANopen, facilitating data exchange and communication with upper – level control systems or other devices3. In addition, this driver has intelligent protection functions such as overload, overheating, and over – current protection, ensuring the safe operation of the system and equipment3. With its programmability, users can configure parameters and program control logic according to their actual needs3. The modular design of the S22460 – SRS allows for flexible system configuration and expansion3.
2. Product Parameters
- Voltage: Operates with AC (120/240 VAC) or DC (20 – 90 VDC) power sources2.
- Current: Current ratings range from 24 ARMS continuous to 48 ARMS peak2.
- Interface Types: Usually has interfaces such as EtherCAT, CANopen, etc3.
- Compatibility: Compatible with a variety of KOLLMORGEN motors and often works well with common industrial control systems.
3. Advantages and Characteristics
- High – Performance Control: It has a velocity loop bandwidth of up to 800 Hz, offering high – speed and accurate motion control2. The high – resolution (24 – bit) feedback and 3 – 5 kHz current loop bandwidth ensure smooth motion and rapid start – stop actions2. For example, in a semiconductor fabrication process, it can precisely control the movement of the wafer stage, improving production efficiency and product quality.
- Easy Integration: With multiple communication interfaces, it can be easily integrated into different industrial automation systems. In an electronic assembly line, it can quickly connect to the upper – level control system to achieve coordinated control of various production processes.
- Reliability and Stability: As a product of KOLLMORGEN, it is designed to operate stably in harsh industrial environments. It has passed UL 508C recognition, CE marking, and conforms to EN50178 and EN61800 – 3 standards, ensuring reliable performance2.
4. Application Areas and Cases
- Application Areas: This spare part is suitable for various industries such as manufacturing, energy, and automation control. It is widely used in applications like robotic arms, CNC machine tools, and packaging machinery3.
- Application Case: In a packaging machinery production line, the KOLLMORGEN S22460 – SRS is used to control the motion of the packaging robot. It accurately controls the position and speed of the robot’s arm, enabling precise packaging of products. This has increased the packaging efficiency by 30% and reduced the error rate to less than 1%, improving the overall production quality and efficiency.
5. Comparison with Competitors
Compared to similar products in the market, the KOLLMORGEN S22460 – SRS stands out with its high – performance control capabilities, wide range of communication interfaces, and excellent reliability and stability. It offers a higher velocity loop bandwidth and better resolution feedback, resulting in more accurate motion control. Its modular design also provides greater flexibility in system configuration and expansion.
6. Selection Recommendations
- Compatibility: Ensure that the S22460 – SRS is compatible with your existing equipment, including motors and control systems.
- Installation Environment: Consider the installation space and environmental conditions. The compact size of the S22460 – SRS allows it to be installed in tight spaces, but it should be protected from dust, moisture, and extreme temperatures.
- Budget: While the KOLLMORGEN S22460 – SRS offers high performance and reliability, it’s important to consider your budget. Evaluate the cost – effectiveness based on your specific application requirements.
7. Precautions
- Safety Specifications: When installing and using the S22460 – SRS, follow the relevant safety regulations. Ensure proper grounding to prevent electric shock and short circuits.
- Maintenance Recommendations: Regularly check the connection status of the drive and motor to ensure reliable operation. Clean the dust on the drive regularly to prevent overheating. Also, periodically update the drive’s firmware to ensure optimal performance and compatibility.
Shanxi Runsheng Import and Export Co., Ltd. is your reliable partner. We provide sales and technical support for KOLLMORGEN S22460 – SRS and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will be happy to serve you
