Description
Parameters and specifications:
Rated current: Continuous current up to 36 amps, peak current up to 72 amps.
Rated voltage: 400 VDC, while also supporting a variety of different voltage inputs, including 120/240 VAC and 20-90 VDC, rated from 1.5 amps RMS continuous current to 48 amps RMS peak.
Operating temperature: -20°C to 70°C.
Output frequency: 50HZ.
Control principle: Used for automatic control.
Current loop bandwidth: 3-5 kHz high performance current loop bandwidth.
Resolution: 24-bit high resolution feedback.
Size and weight:
Dimensions: 270mm x 140mm x 70mm (L x W x H). Note, however, that the size mentioned in some search results is 2004050mm, which may refer to different components or expansion modules.
Weight: 3.5kg. But another search result mentioned a weight of 2KG, which could refer to a different model or configuration.
Series:

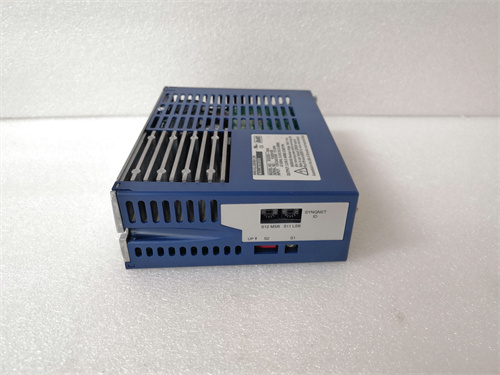

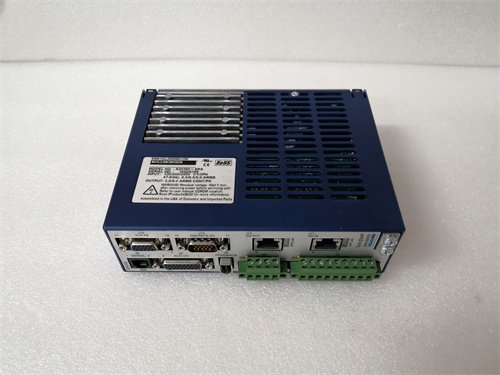

The S20360-SRS belongs to the Kollmorgen S2000 series of servo drivers.
Features:
High resolution feedback and high performance current loop bandwidth: Ensure motor performance at high speed or precise positioning.
Intelligent feedback device: With electronic motor nameplate, allowing plug and play debugging in most applications, greatly simplifying the installation and debugging process, reducing maintenance costs and time for users.
A variety of communication interfaces, such as EtherCAT, CANopen, Modbus, etc., facilitate communication with other devices and control systems.
Supports torque and speed control: as well as up to 18-bit analog reference inputs and encoder equivalent outputs.
Functions:
Motion control: KOLLMORGEN S20360-SRS servo drivers are designed for precise control of servo motors, enabling smooth, fast and precise motion control of servo motors in applications.
Wide application: The servo drive is widely used in aerospace, electronic manufacturing, laboratory automation, textile and pulp manufacturing and other industries.
