Description

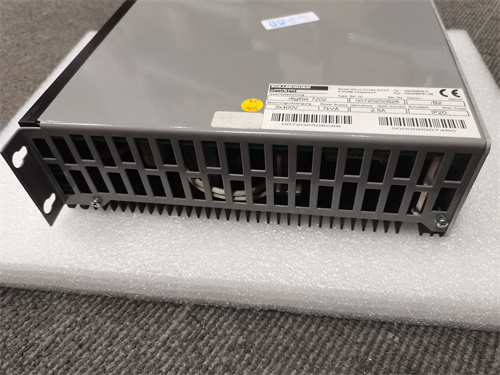

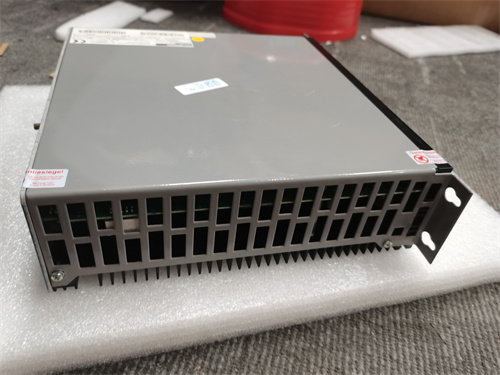

The KOLLMORGEN DIGIFAS7201 is a servo amplifier from the Digifas 7000 series, offering high performance and precision for various industrial automation and motion control applications. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Rated Output: The DIGIFAS7201 has a rated output of 1.5 amps.
Rated Intermediate Circuit Voltage: It has a rated intermediate circuit voltage of 560 volts.
Rated Power Supply Voltage: DIGIFAS7201 can operate with a rated power supply voltage of 3 x 80-400/50 Hz, with a maximum of 60 Hz.
Residual Voltage: It has a residual voltage of 10% and 5 volts.
Dimensions and Weight:
Dimensions: The DIGIFAS7201 measures approximately 234mm in length.
Weight: Depending on the source, the weight can vary between 1.2kg, 2KG, and 1.2kg. It’s important to note that these are approximate values, and the actual weight may vary depending on the specific configuration or model.
Series:
DIGIFAS7201 belongs to the Digifas 7000 servo amplifier series.
Features:
User-Selectable Sensorless Vector Control: DIGIFAS7201 allows users to select sensorless vector control, enabling high torque at low speeds, even providing 150% torque at an output frequency of 1 Hz.
I/O and Communication Capabilities: The servo amplifier includes I/O and communication functions for seamless integration into various systems.
Integrated PLC Module: DIGIFAS7201 offers an integrated PLC module, which adds flexibility and convenience to the system.
Functions/Role:
DIGIFAS7201 is designed for use in motion control production lines and is suitable for controlling small electric motors (ranging from 0.1 to 7.5 kW).
It provides precise and responsive control over servo motors, ensuring accurate positioning, speed control, and torque management.
DIGIFAS7201 can be used in a wide range of industrial applications, including automation, robotics, packaging machinery, and CNC machines, where precision and reliability are crucial.
