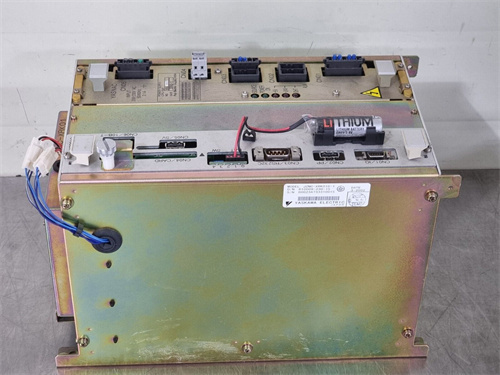

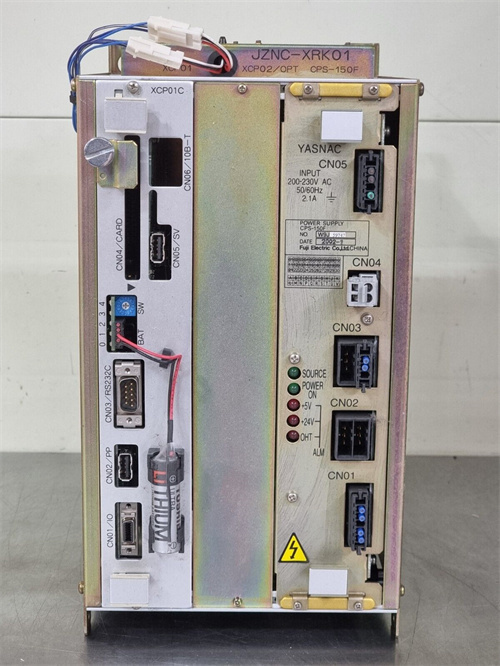

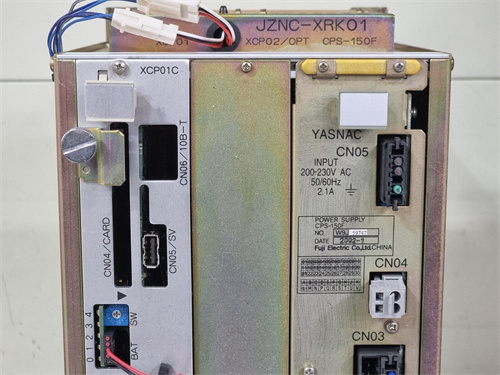

JZNC-XRK01D-1

Description

Parameter Specifications

1. Power Supply: The JZNC – XRK01D – 1 typically operates on a 24V DC power supply, with a power consumption of around 5 – 8W. This low – power requirement makes it energy – efficient and suitable for continuous operation in industrial settings.
2. Input/Output Channels: It is equipped with multiple digital input and output channels. There are 8 digital input channels, which can receive signals from various sensors such as limit switches, proximity sensors, and photoelectric sensors. And it has 6 digital output channels, capable of controlling devices like solenoid valves, relays, and indicator lights.
3. Communication Interface: It features an RS – 485 communication interface, supporting the Modbus RTU protocol. This allows for easy integration with other industrial devices and control systems, enabling data exchange and remote monitoring.
4. Operating Temperature Range: Designed to work in a wide temperature range, from – 10°C to 50°C. This makes it suitable for use in different industrial environments, including those with relatively harsh temperature conditions.

Applications

1. Industrial Automation: In manufacturing plants, it can be used to control and monitor simple production processes. For example, it can control the movement of a conveyor belt based on the signals from sensors detecting the presence of products, or it can manage the operation of a small – scale assembly machine.
2. Building Automation: In commercial buildings, it can be used for basic control tasks such as controlling the opening and closing of blinds according to the light intensity detected by sensors, or monitoring the status of door locks.
3. Agricultural Automation: In greenhouse automation, it can monitor environmental parameters like temperature and humidity through connected sensors and control ventilation fans or heaters accordingly.

Weight and Dimensions

1. Weight: Approximately 0.2 kg, which is very light and easy to handle during installation and maintenance.
2. Dimensions: It has a compact design, with dimensions of about 80mm (length) x 60mm (width) x 30mm (height). This small size allows it to be easily installed in control boxes or other limited – space areas.

Features

1. Compact and Lightweight: Its small size and low weight make it highly portable and easy to integrate into various systems without taking up much space.
2. Easy Configuration: Configuration is simple and straightforward. Users can set up input/output functions, communication parameters, and other settings through software or DIP switches, reducing the complexity of installation and operation.
3. Cost – Effective: It offers a cost – effective solution for basic automation and control tasks, especially for small – scale applications where high – end features are not necessary.

Stability and Reliability

1. Solid Construction: Built with quality components and a durable enclosure, it can withstand normal industrial vibrations, minor shocks, and dust.
2. Electrical Isolation: It provides electrical isolation between input/output channels and the power supply, protecting the device from electrical interference and ensuring stable signal transmission.
3. Long – term Testing: Through long – term testing, it has been proven to have a reliable performance over time, with a low failure rate.
