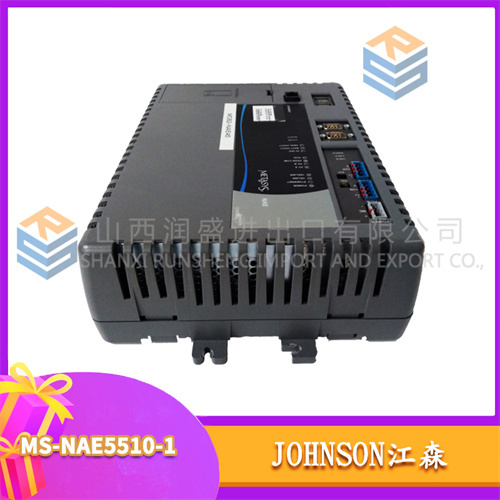

JOHNSON MS-NAE5510-1

Description

Parameters and Specifications:

• Input Voltage: 24V DC ±10%¹
• Operating Temperature: -10℃ to +50℃¹
• Storage Temperature: -20℃ to +70℃¹
• Humidity: 10% to 90% RH (non-condensing)¹
• Dimensions: 120mm × 80mm × 40mm¹
• Weight: 250g¹
• Processor: ARM Cortex-M4 Core¹
• Memory: 512KB Flash, 96KB RAM¹
• Digital Inputs: 8 channels, 24V DC¹
• Digital Outputs: 8 channels, 24V DC, 0.5A per channel¹
• Analog Inputs: 4 channels, 0-10V DC¹
• Analog Outputs: 4 channels, 0-10V DC, 12-bit resolution¹
• Communication: Ethernet, Modbus, TCP, RS485¹

Series:

• Metasys Series²³

Features:

• High-Speed Processing: Provides fast response time¹
• Flexibility: Multi-channel input and output options¹
• Built-In Diagnostics: Enhances reliability with internal diagnostic and fault detection features¹
• User-Friendly Interface: Simplified operation with an easy-to-use programming interface¹
• Durable Design: Compact and durable design suitable for harsh environments¹
• Communication Protocols: Supports BACnet, Modbus, and LonWorks for seamless integration with various devices and systems⁴
• Multiple Ports: Includes Ethernet, RS-485, RS-232, and USB ports for connectivity and communication⁴
• Large Memory: 4GB Flash and 1GB SDRAM for efficient operation and data processing⁴

Role and Function:

The JOHNSON MS-NAE5510-1 is a network controller produced by Johnson Controls. It is typically used in Building Automation Systems (BAS) and Building Management Systems (BMS) to manage and control various devices, systems, and subsystems within a building²³. The controller aims to achieve energy efficiency, improved comfort, and monitoring of building operations². It is designed for large commercial buildings such as offices, hospitals, and universities⁴⁵ and can integrate with HVAC, lighting, access control, and security systems⁴.
