Description
Parameters and specifications
Measuring range:
Conductivity measurement range: 1μS/cm ~ 1999mS/cm
Minimum range: 100μS/cm
Maximum range: 1999mS/cm
Process temperature:
Operating temperature range: -10℃ ~ 130℃
Process pressure:
Depends on installation conditions, but generally less than 2MPa (300psi)
Process flow rate:
Maximum 5m/s
Cable length:
Optional length: 5m, 10m, 15m, 20m
Accuracy:
Precise values are not given directly, but the new generation of inductive conductivity sensors can provide highly accurate measurements
Size and weight
Size:
No specific dimensions are given directly, but it is mentioned that the top of the sensor has G3/4 threads
Weight:
Approx. 0.6kg
Series and model
Series: ISC series conductivity sensor

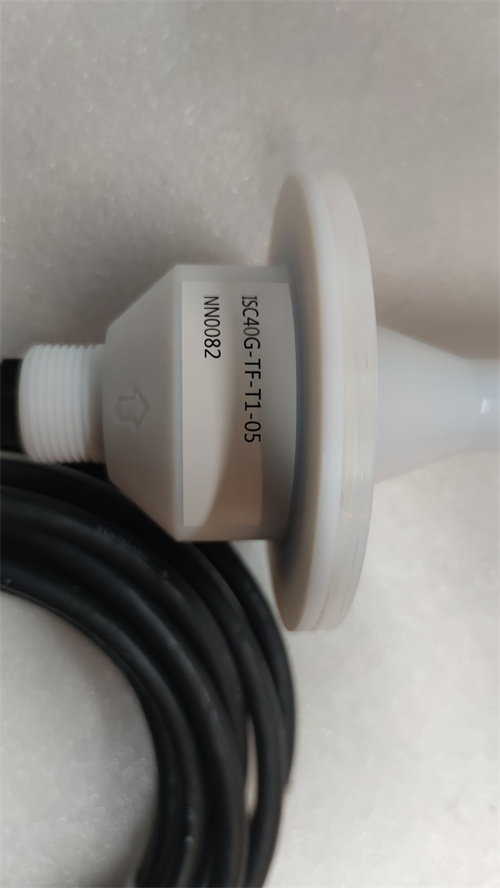

Model: ISC40G-TF-T1-05
trait
Material:
Sensor body: PEEK (Poly Ether Ether Ketone), corrosion resistance, wear resistance
Gasket: Viton® ethylene propylene rubber
Adapter (optional) : SUS316 stainless steel, PVC or PVDF
Technical features:
Induction conductivity technology reduces scaling and polarization errors
Large diameter sensor, long-term stability
Provides highly accurate measurements over a wide measurement range and process temperature range without changing battery constants or re-calibration
Safety and Protection:
The output prevents short circuits, overvoltage and overtemperature
effect
The ISC40G-TF-T1-05 conductivity sensor is mainly used to measure and control the conductivity of various solutions to meet the various requirements of conductivity measurement, including reliability, accuracy, adjustable range and cost performance.
It is widely used in industrial fields requiring accurate measurement of electrical conductivity, such as chemicals, water treatment, pharmaceuticals, etc.
