Description
Parameters and Specifications:

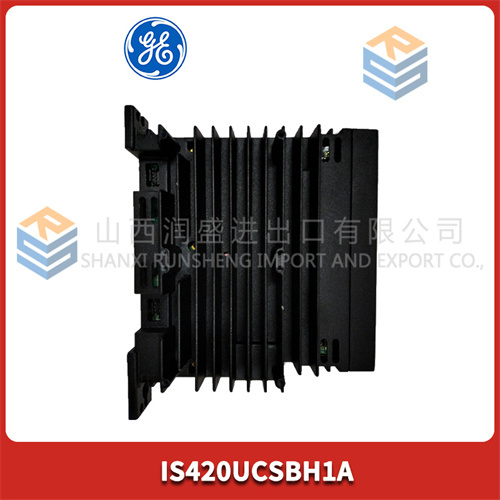

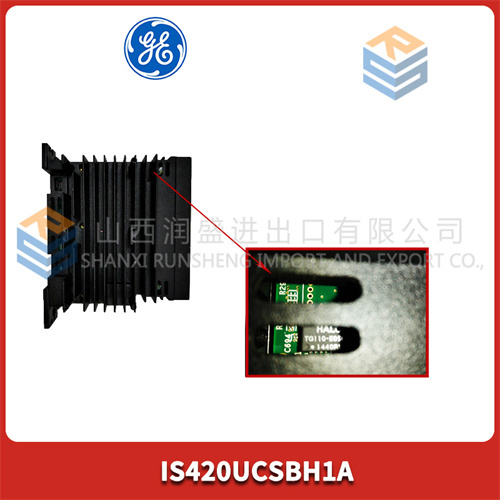

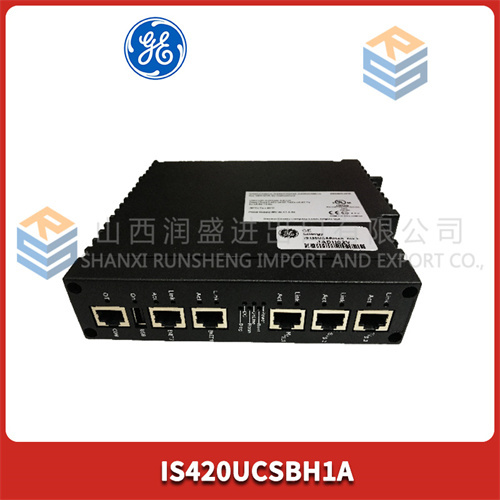

Model: IS420UCSBH1A
Manufacturer: General Electric (GE)
Type: UCSB Controller Module
Series: Mark VIe
Input Voltage Range: 12-48VDC
Output Voltage: 5VDC
Output Current: Max 10A
Role:
IS420UCSBH1A serves as an independent computer executing control system logic for specific applications. It does not host any application I/O and receives all input data from connected I/O networks.
Weight and Dimensions:
Weight: Approximately 120g (or 0.8KG, varying based on sources)
Dimensions: 170mm x 105mm x 32mm (or stated as 324*115mm in some listings, which may refer to a packaging or mounting dimension)
Features:
Pre-installed Software: The controller comes with dedicated software pre-installed.
Online Edits: Minor changes to the control software can be made online without restarting the system.
Clock Synchronization: IEEE 1588 protocol synchronizes the clocks of I/O components and controllers to within 100 microseconds.
Communication Ports: Equipped with various ports such as Ethernet, Predix connection, USB, COM, and display ports for diverse connectivity and functionality.
Application Areas:
IS420UCSBH1A is primarily used in industrial control systems, particularly in environments requiring high reliability and precision, such as turbine equipment control in power generation or other critical industrial processes
