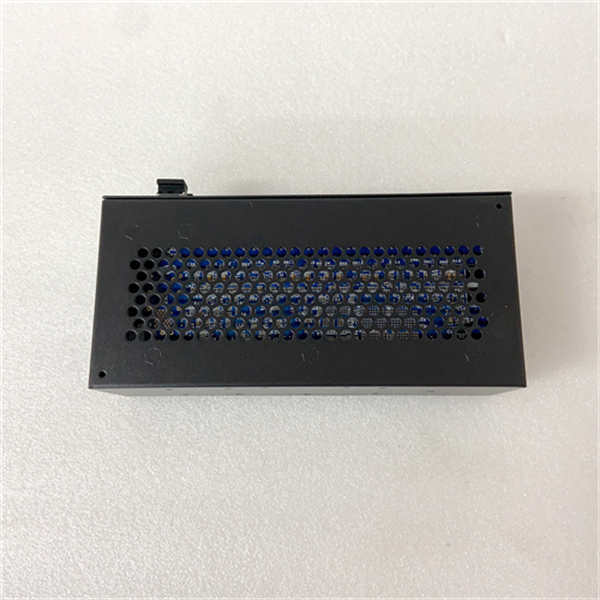

IS420ESWBH1A

¥4,120.00

Applications



  1. Industrial Automation: In manufacturing plants, the IS420ESWBH1A can be used to control and monitor production lines. For example, it can manage the movement of conveyor belts based on the signals from sensors detecting the presence of products. It can also control the operation of small – scale assembly machines.
  2. Building Automation: In commercial buildings, it can be used for basic control tasks such as controlling the lighting system based on occupancy sensors or monitoring the status of door locks.
  3. Process Monitoring: In chemical and pharmaceutical industries, it can monitor the status of various process equipment, such as pumps and valves, and send signals to the control system for further action.

Weight and Dimensions



  1. Weight: Approximately 0.7 kg, which is relatively light and easy to handle during installation and maintenance.
  2. Dimensions: It has a compact design, with dimensions of about 140mm (length) x 120mm (width) x 50mm (height). This small size allows it to be easily installed in control boxes or other limited – space areas.
Category:

Description



Parameter Specifications



  1. Power Supply: The IS420ESWBH1A typically operates on a 24V DC power supply. The power consumption is approximately 8 – 12W, designed to be energy – efficient for continuous operation in industrial settings.
  2. Communication Interface: It is equipped with an Ethernet communication interface supporting a data transfer rate of up to 100Mbps. It adheres to the Modbus TCP protocol, which enables seamless communication with other devices in an industrial network, facilitating data exchange and remote control.
  3. Input/Output Channels: It features 16 digital input channels and 16 digital output channels. The digital input channels can receive signals from various sensors such as proximity sensors, limit switches, and photoelectric sensors. The digital output channels can drive actuators like solenoid valves, relays, with a current – driving capacity of up to 0.5A per channel.
  4. Operating Temperature Range: Designed to function within a temperature range of – 10°C to 50°C. This temperature tolerance allows it to be used in a wide variety of industrial environments with normal temperature variations.

Applications



  1. Industrial Automation: In manufacturing plants, the IS420ESWBH1A can be used to control and monitor production lines. For example, it can manage the movement of conveyor belts based on the signals from sensors detecting the presence of products. It can also control the operation of small – scale assembly machines.
  2. Building Automation: In commercial buildings, it can be used for basic control tasks such as controlling the lighting system based on occupancy sensors or monitoring the status of door locks.
  3. Process Monitoring: In chemical and pharmaceutical industries, it can monitor the status of various process equipment, such as pumps and valves, and send signals to the control system for further action.

Weight and Dimensions



  1. Weight: Approximately 0.7 kg, which is relatively light and easy to handle during installation and maintenance.
  2. Dimensions: It has a compact design, with dimensions of about 140mm (length) x 120mm (width) x 50mm (height). This small size allows it to be easily installed in control boxes or other limited – space areas.

Features



  1. Ethernet Connectivity: The Ethernet communication interface with Modbus TCP support enables fast and reliable data transfer, facilitating real – time control and monitoring. It also allows for easy connection to a central control system or a network for remote access.
  2. Flexible I/O Configuration: The ability to configure the 16 input and 16 output channels according to specific application requirements provides great flexibility in system design.
  3. Cost – Effective: It offers a cost – effective solution for basic automation and control tasks, especially for small – scale applications where high – end features are not necessary.

Stability and Reliability



  1. Robust Construction: Built with high – quality components and a durable enclosure, it can withstand normal industrial vibrations, minor shocks, and dust.
  2. Electrical Isolation: It provides electrical isolation between input/output channels and the power supply, protecting the device from electrical interference and ensuring stable signal transmission.
  3. Long – term Testing: Through long – term testing, it has been proven to have a reliable performance over time, with a low failure rate.

Practical Case



In a small – scale beverage bottling plant, the IS420ESWBH1A is used to control the filling and capping process. The digital input channels are connected to sensors that detect the presence of bottles on the conveyor belt. When a bottle is detected, the device sends a signal through the digital output channels to the filling machine to dispense the appropriate amount of beverage and then to the capping machine to seal the bottle. One day, there was a brief power outage in the plant. Thanks to the electrical isolation feature and the stable design of the IS420ESWBH1A, the device quickly resumed normal operation after the power was restored. The cost – effective and reliable performance of the device ensured the continuous and efficient operation of the beverage bottling process.
