Description
Basic specifications
Manufacturer : General Electric (GE)
series : Mark VI

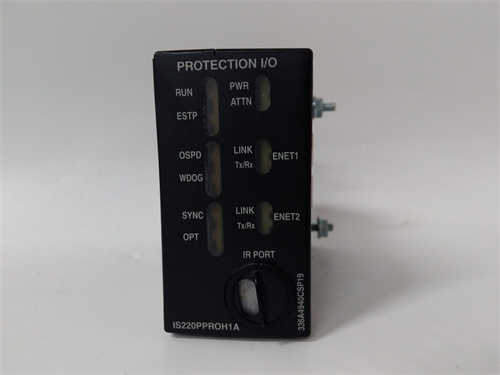

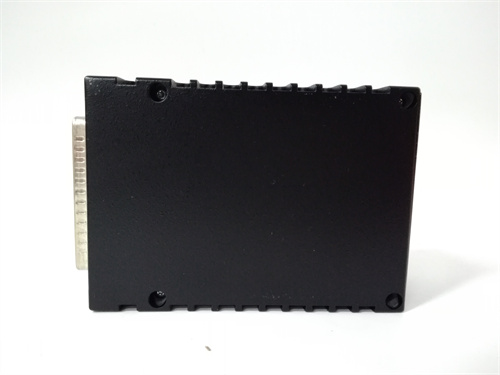

Model : IS220PPROH1A
Type : Spare Turbine Protection (PPRO) I/O board
main role
For the GE Speedtronic Mark VI gas turbine control system.
Provide backup overspeed protection system.
Backup check of generator and utility grid simultaneously.
A standalone monitor that acts as the master controller.
Product parameters
Power supply voltage : 24 VDC
power consumption : < 25 W
Operating temperature : -40°C to +85°C
Relative humidity : 0% to 95% (non-condensing)
vibration : 0.05g RMS (20 Hz to 2,000 Hz)
impact : 5 g (half sine wave, duration 11 ms)
Dimensions and weight
Dimensions : 224 mm x 168 mm x 64 mm
Weight : 2.3 kg
Other features
Structural design improves reliability.
With diagnostic function, easy to use.
Fully compatible with Mark VI control systems.
Commonly used with TREAH terminal boards for emergency trip applications in aviation-derived turbines.
