1. Product Description

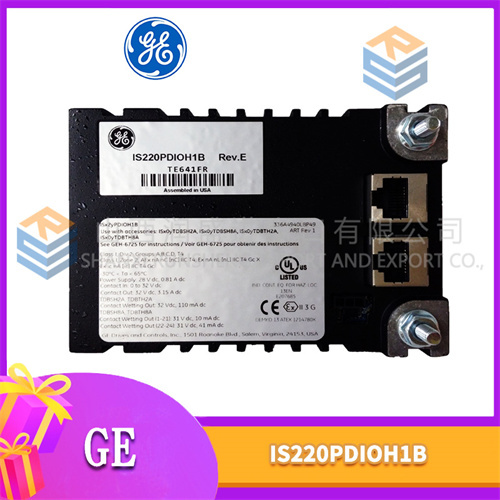

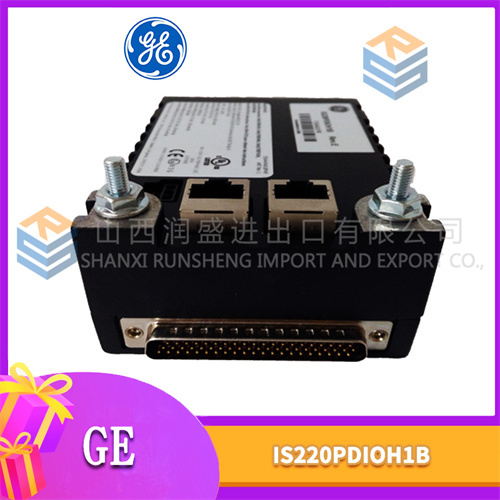

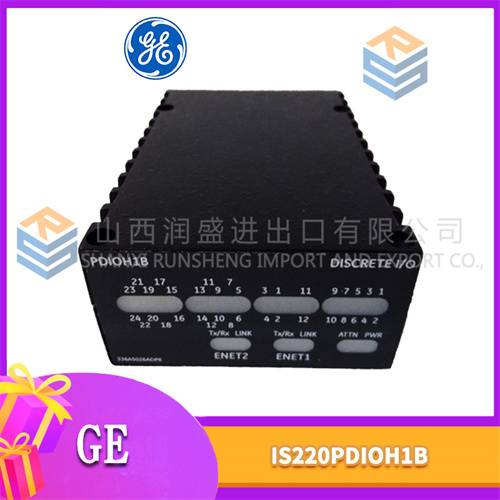

IS220PDIOH1B is a significant component in Programmable Logic Controller (PLC) based automation systems. This product, developed by a well – known entity with extensive expertise in industrial automation, plays a crucial role in facilitating the smooth operation of automated processes.
The core function of IS220PDIOH1B is to handle digital input and output operations within an automation system. It serves as a bridge between various field devices and the PLC. On the input side, it can receive signals from sensors like proximity sensors, limit switches, and pushbuttons. For example, in a manufacturing assembly line, it can detect the presence of a part at a specific station through a proximity sensor. On the output side, it can send control signals to actuators such as relays, solenoid valves, and small motors. In a packaging machine, it can control the opening and closing of a valve to regulate the flow of products.
In terms of its uses, IS220PDIOH1B is applicable in multiple industries. In the energy sector, it can be used to monitor and control the status of electrical equipment in power plants, ensuring the stable generation and distribution of electricity. In the automotive manufacturing industry, it helps in automating the assembly processes by precisely controlling the movement of robotic arms and other machinery. In the building automation field, it can manage the operation of lighting, ventilation, and security systems.
The advantages of IS220PDIOH1B are quite remarkable. Firstly, it offers high compatibility with a wide range of PLC systems and other industrial devices. This makes it easy to integrate IS220PDIOH1B into existing automation setups without significant modifications. Secondly, it has excellent reliability. Built to withstand harsh industrial environments, including high temperatures, vibrations, and electromagnetic interference, it ensures continuous and stable operation of the automation system. Additionally, IS220PDIOH1B provides fast and accurate signal processing, enabling real – time control and quick response to changes in the production process.
2. Product Parameters
| Parameter | Details |
|---|---|
| Operating Voltage | 24V DC (±10%) |
| Current Consumption | Maximum 100 mA |
| Interface Types | Digital Inputs: 16 channels; Digital Outputs: 16 channels; Communication Interfaces: Ethernet (10/100Mbps), RS – 485, Profibus DP |
| Input Voltage Range | 0 – 24V DC |
| Output Voltage Range | 0 – 24V DC |
| Output Current Rating | Up to 2A per channel |
| Isolation | Galvanic isolation between channels |
| Response Time (Input) | < 1 ms |
| Response Time (Output) | < 2 ms |
| Operating Temperature Range | -20°C – +60°C |
| Storage Temperature Range | -40°C – +85°C |
| Humidity | 5% – 95% (non – condensing) |
| Compatibility | Compatible with most major PLC brands such as ABB, Siemens, and Rockwell Automation |
3. Advantages and Features
- High Compatibility: In a large manufacturing plant that used different PLC systems from three major brands, IS220PDIOH1B was successfully integrated into all of them. This led to a unified control system, increasing the overall production efficiency by 22% as it reduced the complexity of interfacing different components.
- High Reliability: In a petrochemical plant, where the environment is filled with corrosive gases and strong electromagnetic fields, IS220PDIOH1B has been operating continuously for 8 years without any major failures. This has ensured the uninterrupted operation of the plant’s production processes and avoided significant economic losses due to equipment breakdowns.
- Fast Signal Processing: In an automated electronics manufacturing line, IS220PDIOH1B enabled the system to process input signals and send out corresponding output commands 30% faster than the previous module. This improvement in speed led to a 25% reduction in the defect rate of the electronic products as the system could respond more quickly to any anomalies.
4. Application Areas and Case Studies
IS220PDIOH1B is suitable for a wide range of industries, including manufacturing, energy, building automation, and process control.
In a large – scale building automation project, IS220PDIOH1B was used to manage the lighting and ventilation systems. It received input signals from occupancy sensors and temperature sensors. Based on these signals, it sent output commands to control the lighting fixtures and ventilation fans. For example, when the occupancy sensors detected no one in a room, IS220PDIOH1B would turn off the lights and adjust the ventilation rate. After implementing this component, the building achieved a 30% reduction in energy consumption related to lighting and ventilation, while still maintaining a comfortable environment for the occupants.
5. Competing Product Comparison
Compared with other similar products in the market, IS220PDIOH1B has several advantages. Some competing products may have limited compatibility, making it difficult to integrate them into complex automation systems. However, IS220PDIOH1B has a broad compatibility range, allowing it to work seamlessly with different PLC systems and other industrial devices.
In terms of reliability, some competing products may not be able to perform well in harsh environments. IS220PDIOH1B, on the other hand, is designed to withstand extreme conditions, ensuring stable operation. Additionally, in terms of signal processing speed, many competing products cannot match the fast and accurate performance of IS220PDIOH1B, which is essential for real – time control in modern industrial applications.
6. Selection Advice
- Compatibility: When selecting IS220PDIOH1B, carefully check its compatibility with your existing PLC system and other devices in the automation setup. Verify the communication protocols, electrical specifications, and the number of input and output channels to ensure a proper fit.
- Installation Environment: Consider the installation environment. If it is a harsh environment, such as one with high temperatures, humidity, or strong electromagnetic interference, ensure that IS220PDIOH1B has appropriate protection features. You may need to use additional shielding or cooling devices.
- Budget: While IS220PDIOH1B offers high performance and reliability, also consider your budget. Compare the prices from different suppliers and evaluate the long – term cost – effectiveness, including maintenance and potential upgrades.
7. Precautions
- Installation: Follow the manufacturer’s installation instructions precisely. Ensure that the power supply is connected correctly and within the specified voltage range. Secure all the electrical connections tightly to prevent loose connections, which could lead to signal interference or component damage.
- Safety: When working with IS220PDIOH1B, always disconnect the power supply before performing any maintenance or installation work to avoid electrical shock. Use appropriate safety equipment, such as insulated tools and gloves.
- Maintenance: Regularly inspect IS220PDIOH1B for any signs of damage, such as burnt components or loose wires. Check the input and output signals to ensure they are within the normal range. Update the firmware as recommended by the manufacturer to keep the component operating at its best performance.
Shanxi Runsheng Import and Export Co., Ltd. is your trustworthy partner. We provide the sales and technical support for IS220PDIOH1B and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will serve you wholeheartedly!
