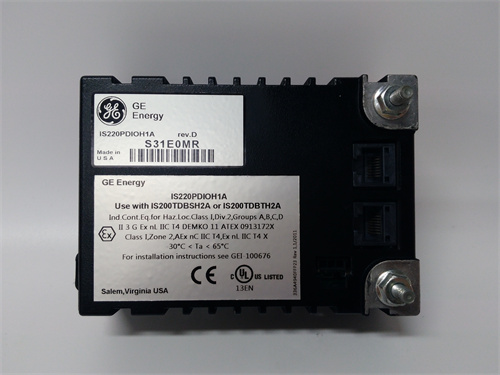

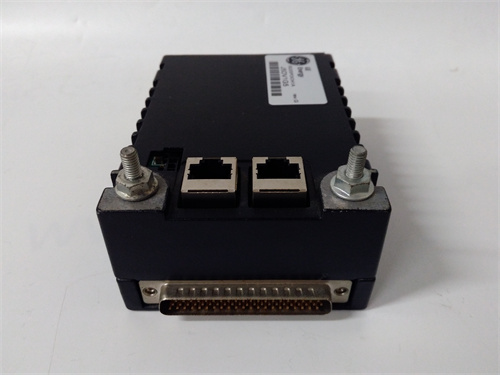

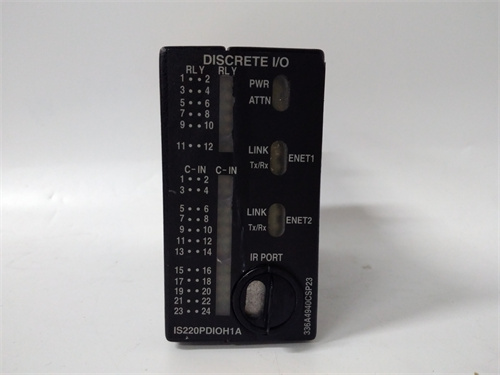

IS220PDIOH1A

Description

trait
High performance: Provides high performance and flexible I/O functionality
Dual power supply redundancy: Redundant input of two power supplies improves system reliability and stability
Multiple protections: including lightning protection, overcurrent protection and surge protection to protect equipment and systems from damage
Communication interface: Supports two Ethernet ports to facilitate data communication with other devices and systems
Flexible configuration: It can be configured and expanded according to specific needs to adapt to different industrial automation and control tasks
Industrial grade design: The housing has IP30 protection grade and adopts wavy aluminum reinforced housing, suitable for various industrial environments

argument
Input quantity: 24 (dry contact input)
Output quantity: 12 (relay output)
Input signal level: 24 V DC
Output signal level: 24 V DC
Rated current: 10 A
Rated voltage: 250 V AC/DC
Communication interface: Two Ethernet ports (100Base-TX)
Power supply: Dual power supply redundant input, DC(9-36)V, typical DC24V, power consumption less than 4W
Lightning protection: 4000V
Overcurrent protection: 1.5A
Surge protection function: 600W
Operating temperature: -10-70℃ (-40~+85℃ wide temperature optional)
specification
Type: Discrete input/Output (PDIO) module
Manufacturer: GE Digital
For the system: Mark VIe series turbine control system
Size and weight
Size: 230mm x 170mm x 85mm (another way of saying it is 132mm105mm52mm
Weight: 2 kg
