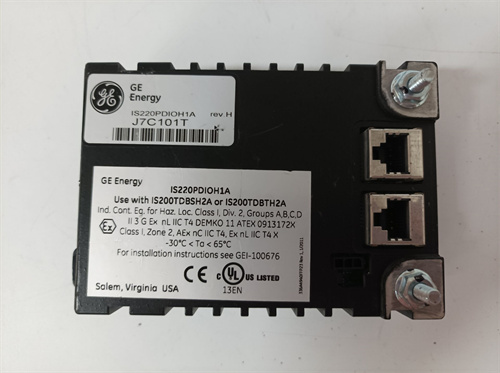

IS220PDIOH1A

Description

argument
Number of entries: 24
Input type: dry contact
Input signal level: 24 V DC
Output quantity: 12
Output type: Relay output
Output signal level: 24 V DC
Rated current: 10 A
Rated voltage: 250 V AC/DC

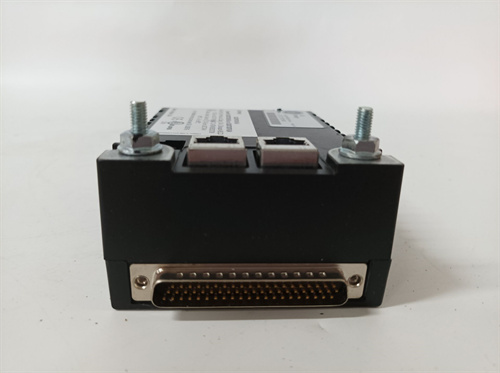

Communication interface: Two Ethernet ports (100Base-TX)
Power supply: 24V DC
Minimum rated voltage: 27.4 VDC, rated voltage is 28.0 VDC
specification
Dimensions: 230 mm x 170 mm x 85 mm (Note: there are also search results that mention dimensions of 112 mm x 57 mm x 127 mm, which may be different models or configurations)
Weight: 2 KG (there are also search results that mention a weight of 0.8KG, which may be the weight of different models or configurations)
Mounting type: DIN rail mounting (for certain models or configurations only)
Certification: CE, UL, CSA, C-Tick, RoHS (for certain models or configurations)
trait
High performance and flexibility: Provides high performance and flexible I/O capabilities that can be used to connect one or two I/O Ethernet networks to discrete I/O endboards.
Programmability and scalability: The ability to integrate with other industrial automation and control systems for more advanced functions and applications.
High precision and stability: can adapt to a variety of harsh working environment.
Field-specific Wiring instructions: The field-specific wiring instructions for the device and its accompanying terminal plate must be followed, including wire size and screw torque.

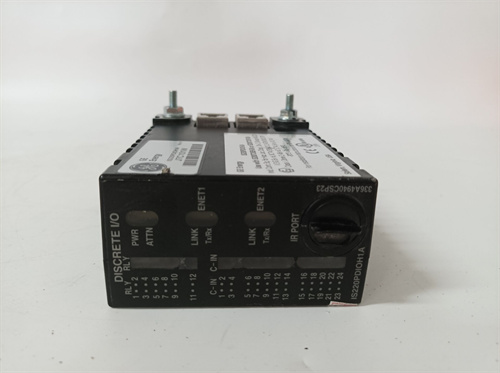

Indicators: The front panel includes LED indicators for two Ethernet ports, device power indicators, and an “Attn” LED.
