Description
Size and weight
Dimensions: 230 mm x 170 mm x 85 mm
Weight: 2 kg
argument
Number of entries: 24
Input type: dry contact
Input signal level: 24 V DC
Output quantity: 12
Output type: Relay output
Output signal level: 24 V DC
Rated current: 10 A
Rated voltage: 250 V AC/DC
Communication interface: Two Ethernet ports (100Base-TX)
Power supply: 24V DC
specification

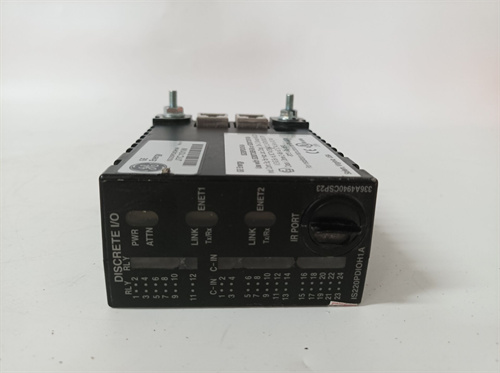

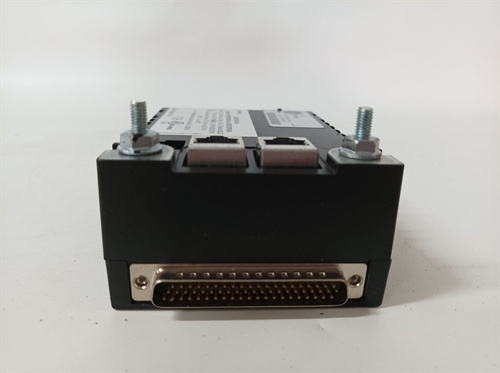

Type: Discrete input/Output (PDIO) module
Application: For the requirements of the Mark VIe series turbine control system, it can be used to connect one or two I/O Ethernet networks to discrete I/O end boards
